Home > Products > Fully Automatic Paper Core Cutter > Double Knife Paper Tube Core Recutter Machinery Paper Tube Cutter

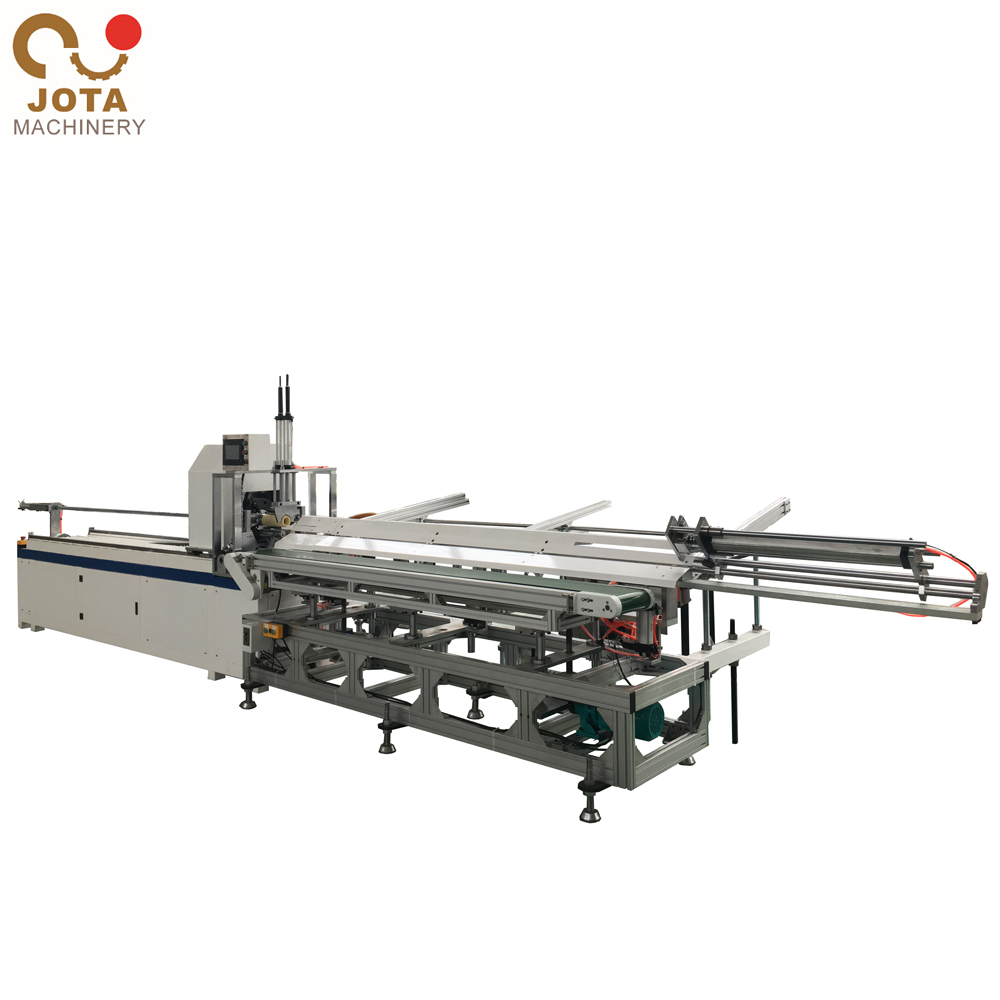

Double Knife Paper Tube Core Recutter Machinery Paper Tube Cutter

Product Description

Product Description Double Knife Paper Tube Core Recutter Machinery Paper Tube Cutter              Main Parameters:

Jumbo Tube length

2000mm

Paper Tube Inner Dia

50-152mm

Paper Tube Thickness

4-15mm

Cutting Length

10-2000mm

Cutting Speed

60 cuts/min

Turret Movement Speed

1.8 m/min

Working Pressure

0.6Mpa

Voltage

380V 3 Phase 50Hz

Power

3kw

Cutting Mode

Paper tube turn; knives and axes do not turn

Operator

1 person

Mould

2 sets

Uploading/Unloading

Hand control

Dimension

Main Body: 3900mm*1000mm*2100mm

Core Feeder: 3600mm*900mm*1200mm

Weight

1800kgs



Ø  Machine adopts Siemens PLC and Tocuh screen control system, all the parameters are displayed on the touch screen, and it runs automatically.

Ø  It adopts Shenzhen Zhengxuan frequency inverter and Xinling motor(Zhejiang) to control.

Ø  It adopts 2 sets Yaskawa servo motor(Japan), one servo motor(0.85kw) to control cutter blade, the other servo motor(1kw) is moved, it control machine head.

Ø  It adopts 2 sets Yaskawa servo driver, one servo driver to control (1kw) to control cutter blade, the other servo driver(1kw) is moved, it control machine head.

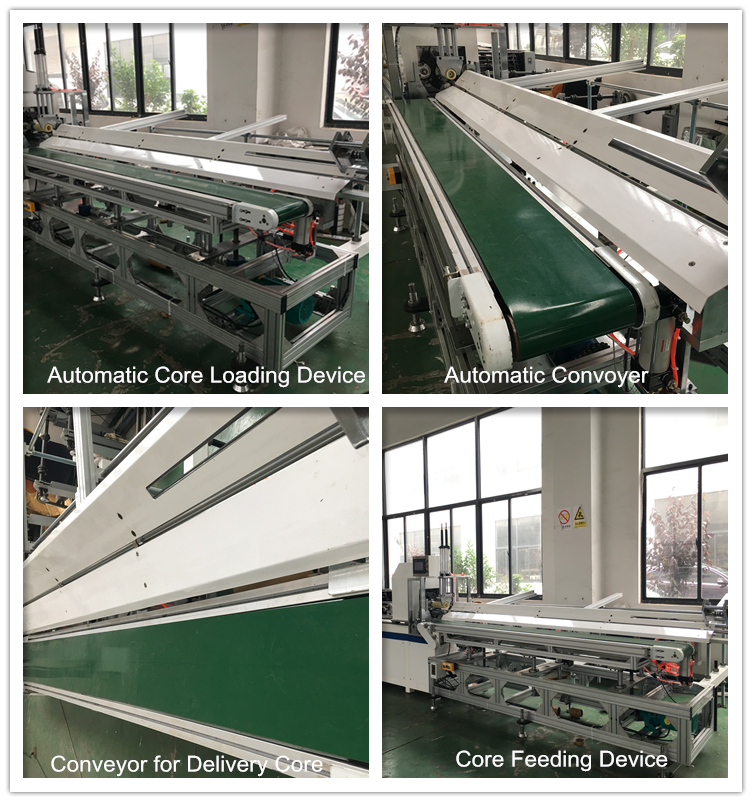

Ø  It adopts Fully Automatic Loading System, save time and labor cost

Ø  It adopts double round blades to cutter.

Ø  It adopts 2 pieces ABBA mobile screw(Taiwan) to separate control cutter and machine head.

Ø  It adopts 2 sets Hiwin move the slider and track(Taiwan) to separate control cutter and machine head.

Ø  It adopts Hugong Signal element, Delixi Electrical components and Zhejiang Xingchen Pneumatic Components.

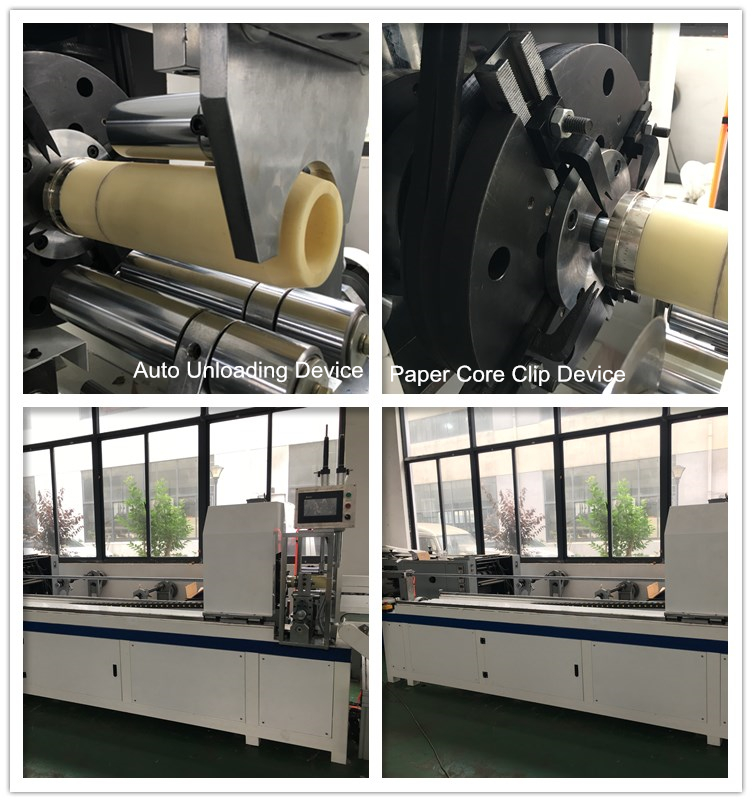

Ø  Paper tube clamping adopts automatic chucks.

  Packaging & Shipping Packing Details: Double Knife Paper Tube Core Recutter Machinery Paper Tube Cutter is with flexible wrapping and wooden case.With the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Manu, Inverter Manu and Electrical Schematic Diagram.   Delivery time : Within 40 days after received 30% deposit receipt by T/T.Double Knife Paper Tube Core Recutter Machinery Paper Tube Cutter . Recommended Products     Our Customer   Exhibition       Company Information   Jota Machinery Industrial Co.,Ltd is a long established engineering company combined with science,research, development, production and management, It is specializing in plastic & paper packing machinery with more than 30 years experiences in China.   We supply all kinds of packaging machines tp satisfy the stringent requirements for Health and Safety, and meet the latest European CE standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world. Our Services Q1:what's payment terms ,trade terms you accept ? Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also  accept other way like L/C , wetern union ,and do CFR&CIF etc. Q2.Does it easy to operate and what can i do if it doesn't work? First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will  sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required. Q3. If the machine's spare parts broken ,where can i get ? We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case  it broken within one year ,we will sent you for free   FAQ 1, Are you trading company or manufacturer? We are manufacturer, and also provide the business solution to all the friends. 2, Do you have quality certificate? Yes we have CE, SGS etc. 3,What's the delivery time? Around 20~30days, however, based on order. 4, Can you help us to buy other goods? Sure of that, it is our honor to work for you, and control the goods quality
