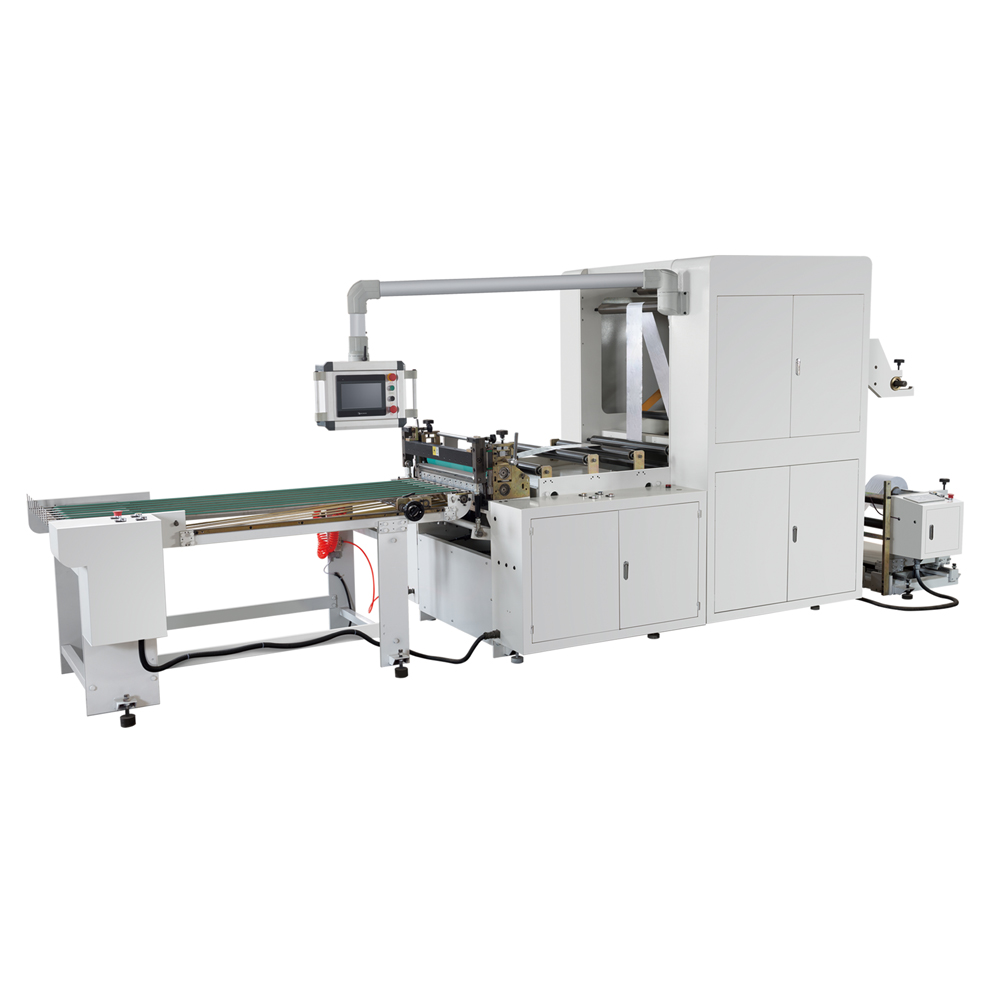

Double Layer Hamburger Paper News Paper Sandwich Paper Sheeting Machine

Product Description

Double Layer Hamburger Paper News Paper Sandwich Paper Sheeting Machine  Product Description     Brief Introduction:

It is suitable for cutting different kind of jumbo roll(such as paper, glass paper, Sandwich Paper, Onion Paper , Burger paper , Aluminum foil paper, plastic film like PVC, OPP, PET, CPP) into different slitting width and length.

  Main Technical Parameters:

Max. Unwinding Width


Max. Unwinding Diameter


Max. Slitting Length


Unwinding Shaft

3” (76mm)air expanding shaft

Material Thickness

Paper in 28-750gsm



Max. Machine Speed

120 times/min







Ø  Adopts Weinview PLC & Touch screen and meter counter. All the working parameters can be displayed on the control monitor. Only need to setup the material thickness and initial tension data, the Micro-computer will calculate the accord data, and keep machine working automatically until the end.

Ø  Adopts with YASKAWA frequency inverter motor which is used to control the sheeting cutter movement, solid stable.

Ø  Adopts with Servo motor from Yaskawa for the material feeding. The precision can be highly controlled in 0.2mm.

Ø  Adopts with automatic braking device: 20kg/ m2 * 1PC to control the material feeding tension.

Ø  Adopts with special treated alloy sheeting cutter, which has a merit for long working life and durance.

Ø  Adopts automatic tension control system which is used to keep a constant tension for material working.

Ø  All transmission rollers have been dynamic/static balance treated.

Ø  Equipped with auto counting system.

Ø  All the electric circuit is in conformity with the CE certification.

Ø  Equipped with emergency stop switch to realize emergency stop at any point of machine.



Unwinding Section

3” air expanding rewinding shaft

Electromagnetic Brake from Taiwan

Fully automatic tension controller

Pneumatic Loading System to load heavy jumbo roll more easy

Double Layer Unwinder Stand

Feeding Section

Feeding motor is controlled by servo motor.

The roller pressure is controlled by the air system, which is adjustable.

Feeding pressure is adjustable by the air circuit.

Rubber roller hardness is 85 degree and diameter is 100mm.

Sheeting Section

The upper cutter is stable and lower cutter base is movable.

The cutting moving is controlled by a inverter motor.

Controlling Section

Weinview PLC & Touch Screen

Trimmed Waste Edge

Edge Waste Blower with Expulsion Tube

  Packaging & Shipping Packaging: Double Layer Hamburger Paper News Paper Sandwich Paper Sheeting Machine is with flexible wrapping and wooden case.With the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Manu, Inverter Manu and Electrical Schematic Diagram.   Delivery Time: Within 45 days after received 30% deposit receipt by T/T. Double Layer Hamburger Paper News Paper Sandwich Paper Sheeting Machine . Recommended Products   Our Customer Exhibition   Company Information    Jota Machinery Industrial (Kunshan)Co.,Ltd is a long established engineering company combined with science, research, development, production and management. It ‘s specializing in plastic & paper packaging machinery with more than 20 years experiences in China.     We supply all kinds of packaging machines to satisfy the stringent requirements for Health and Safety, and meet the latest European CE Standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world.     By Superior quality to create brand, perfect service to make satisfactory. We warmly welcome the friends from home and abroad to work with us to win a mutual benefit future. Our Services   Q1. What's payment terms ,trade terms you accept ? Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also  accept other way like L/C , wetern union ,and do CFR&CIF etc. Q2.Does it easy to operate and what can i do if it doesn't work? First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will  sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required. Q3 . If the machine's spare parts broken ,where can i get ? We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case  it broken within one year ,we will sent you for free.    FAQ   1, Are you trading company or manufacturer? We are manufacturer, and also provide the business solution to all the friends. 2, Do you have quality certificate? Yes we have CE, SGS etc. 3,What's the delivery time? Around 20~30days, however, based on order. 4, Can you help us to buy other goods? Sure of that, it is our honor to work for you, and control the goods quality.

Contact us if you need more details on A3 A4 paper sheeting cutting machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Onion Paper Sheeting Machine、hot dog paper slitting and sheeting machine. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Paper Sheeting Machine
