New Condition Textile Ribbon Polyethylene Film Slitting Machine Price

Product Description

New Condition Textile Ribbon Polyethylene Film Slitting Machine Price    Product Description   Main Technical Parameters:

Max. Unwinding Width

1300mm

Max. Unwinding Diameter

1500mm

Max. Rewinding Diameter

1000mm

Min .Slitting Width

40mm

Acceptable Thickness Range

40gsm-500gsm

Max. Machine Speed

300m/min

Unwinding Shaft

76mm air expending shaft

Rewinding Shaft

2pcs of 76mm air expending shaft

Machine Weight

3000kg

Overall Dimensions

3600*3600*2000mm



Main Applicable Materials And Specifications:

Ø  Machine suits to the slitting of various material, such as regular paper, Kraft paper, bond paper, aluminum foil, film etc.

Ø  Machine adopts  Inovance control system and 7” Hightech HMI control, all the parameters are shown on the screen. You only setup roll diameter, material thickness and original tension etc, the machine can work automatically.

Ø  Machine adopts 3 sets servo motors and 3 sets frequency inverter.

Ø  Machine adopts automatic loading system, it is convenient for feeding.

Ø  Machine adopts Ultrasonic EPC, its high sensitivity can assure the accuracy of material position.

Ø  The unwinding part adopts floating roller to keep the constant tension, the rewinding part adopts 2 sets automatic tension control.

Ø  It adopts magnetic brake, the rewinding adopts magnetic clutch.

Ø  All transmission shafts are dynamic/static balance treated.

Ø  It adopts automatic meter counter. When reached the preset length, machine stop and alarm automatically.

Ø  It adopts emergency switch.

Ø  It adopts air blower to blow waste material off.



SPECIFICATIONS

Application Material

All kinds of mother roll slitting and rewinding, such as PVC, OPP, PET, CPP film, paper, Kraft paper, glass paper, self adhesive paper, non-woven cloth, Fiber glass etc.

Unwinding Section

Ø  3”air expanding rewinding shafts

Ø  Automatic pneumatic loading system

Ø  Photocell

Ø  Magnetic Brake

Ø  Automatic tension Control

Slitting Section

Ø  Disc Cutter Assembly adopt the enlarged type one with motorized type.

Ø  Cutter with adjustable and moveable blade base.

Ø  Choices of Razor cutter or Disc cutter

Rewinding Section

Ø  3”air expanding rewinding shafts

Ø  Pneumatic lift-up unloading system

Ø  Center Rewinding technology

Ø  Pressure roller for rewinding

Ø  Synchronized Servo Motor for rewinding, 2 pieces.

Controlling Section

Ø  PLC & HMI

Ø  All the parameters are displayed on the monitor

Ø  Low voltage electrical

Trimmed Waste

Edge Waste Blower with Expulsion Tube

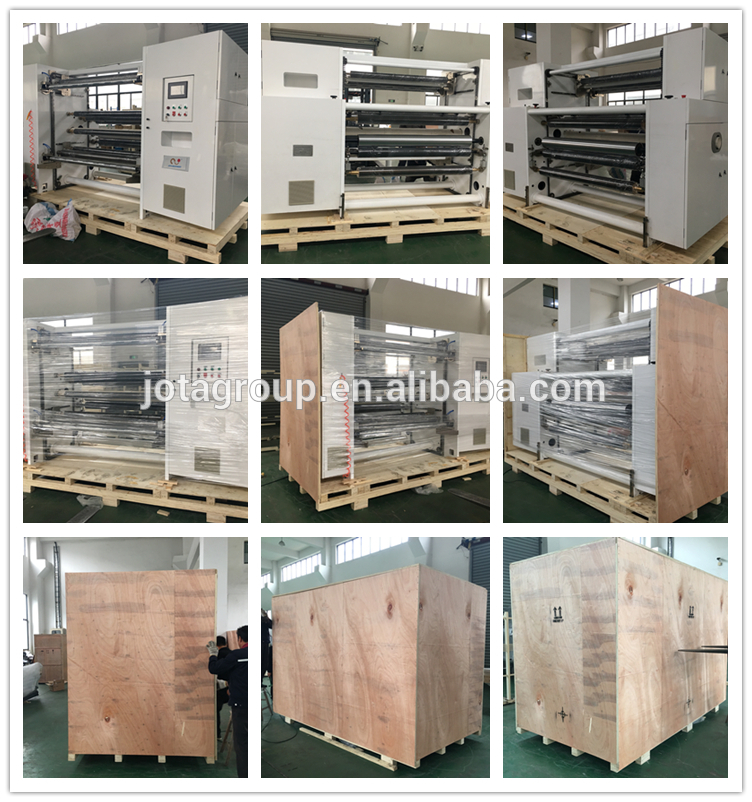

    Packaging & Shipping  Packing Details: New Condition Textile Ribbon Polyethylene Film Slitting Machine Price is with flexible wrapping and wooden case.With the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Manu, Inverter Manu and Electrical Schematic Diagram.   Delivery time : Within 45 days after received 30% deposit receipt by T/T. New Condition Textile Ribbon Polyethylene Film Slitting Machine Price . Recommended Products     Our Customer Exhibition     Company Information  Jota Machinery Industrial Co.,Ltd is a long established engineering company combined with science,research, development, production and management, It is specializing in plastic & paper packing machinery with more than 30 years experiences in China.   We supply all kinds of packaging machines tp satisfy the stringent requirements for Health and Safety, and meet the latest European CE standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world. Our Services Q1:What's payment terms ,trade terms you accept ? Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also  accept other way like L/C , wetern union ,and do CFR&CIF etc. Q2.Does it easy to operate and what can i do if it doesn't work? First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will  sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required. Q3. If the machine's spare parts broken ,where can i get ? We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case  it broken within one year ,we will sent you for free   FAQ 1, Are you trading company or manufacturer? We are manufacturer, and also provide the business solution to all the friends. 2, Do you have quality certificate? Yes we have CE, SGS etc. 3,What's the delivery time? Around 20~45days, however, based on order. 4, Can you help us to buy other goods? Sure of that, it is our honor to work for you, and control the goods quality

Contact us if you need more details on New Condition Textile Ribbon Polyethylene Film Slitting Machine Price. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Slitting Machine、Label Slitting Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
