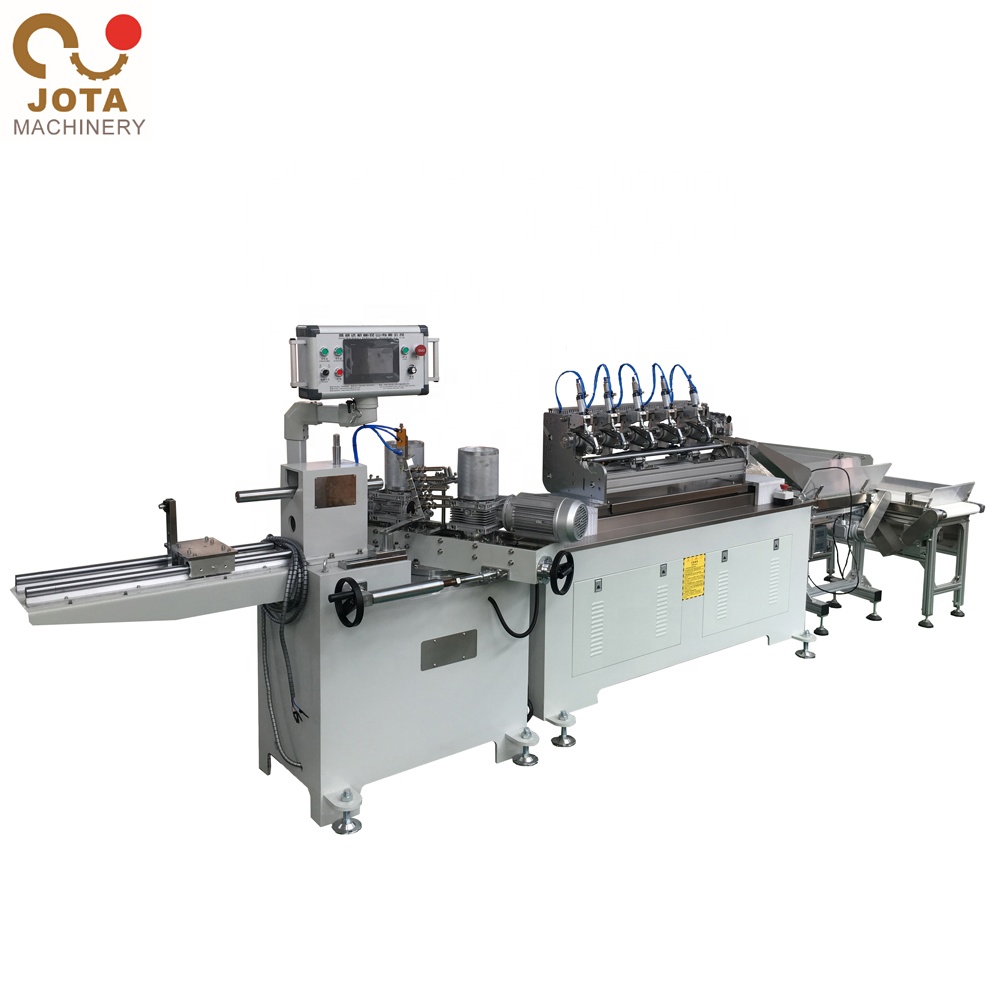

6 Sets of Cutting Blade Drinking Straw Making Machine Paper Bamboo Straw Making Machine
Product Description
Technical Parameter | Control System | |||
Paper Layer | 2-3 layers | Motor | 3.0kw | |

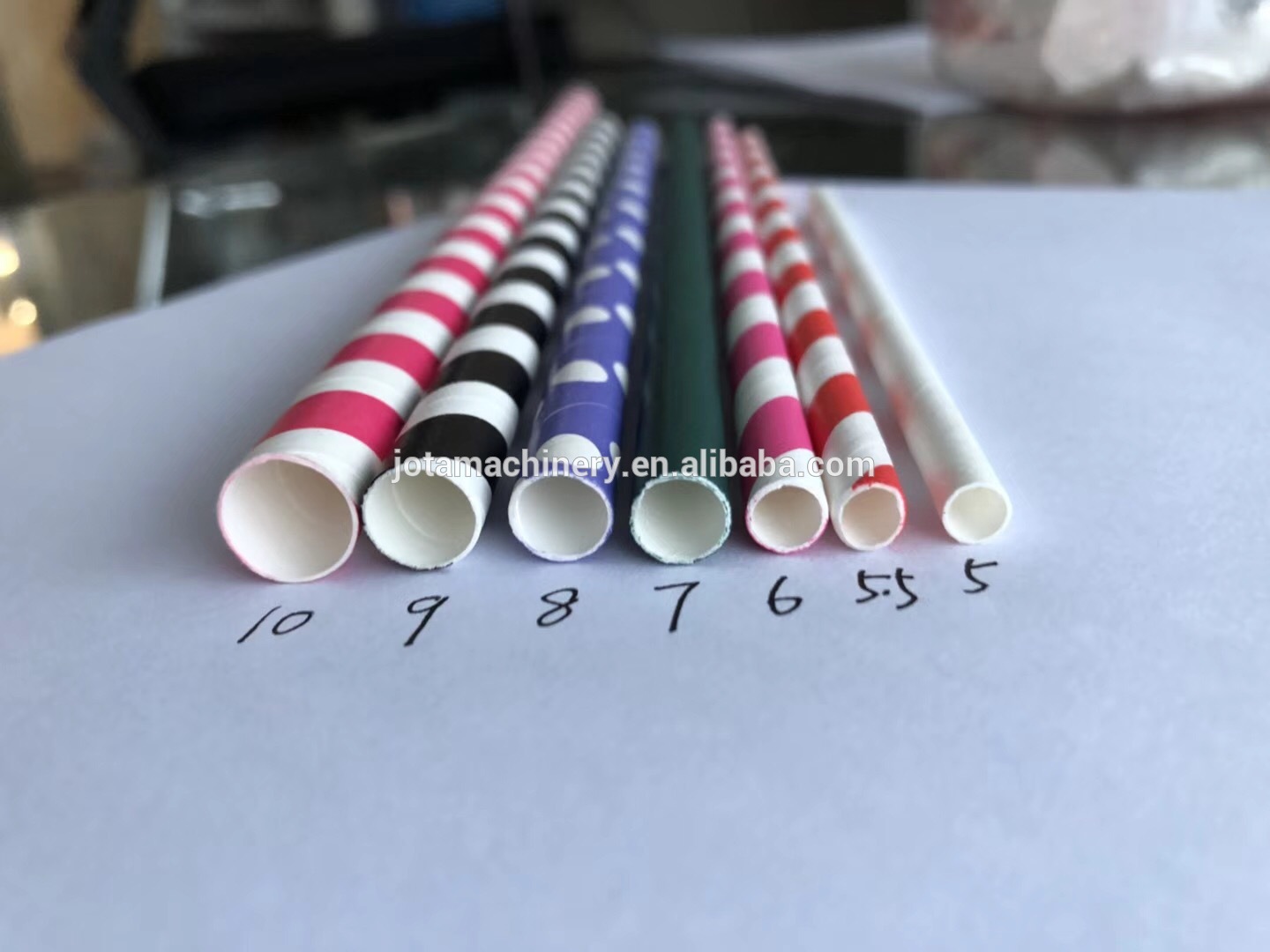

Inner Diameter | 4-10mm | PLC | Samkoon | |
Wall Thickness | 0.5-1mm | Operating Panel | Xiankong | |
Winding Speed | 0-45 meters/min | Inverter | 3.7kw | |
Winding Nose | Two noses single belt | Execute Components | CHNT | |
Length fixing | Encoder | Signal Components | Hugong | |
Speed Control | By Inverter | Pneumatic Components | Xingchen | |
Cutting System | Numerical Multi-blades (standard 5 pcs) | Electric Components | CHNT | |
Synchronism tracking cutting system | Servo motor synchronism tracking | Bearing | Haerbin | |
Servo Motor | Yaskawa 1kw | |||
Gluing Way | Single/Double sides | Screw Rod | ABBA from Taiwan | |
Operator | 1-2 person | Slider | ABBA from Taiwan | |
Working Air Pressure | 0.6Mpa | Configuration | ||

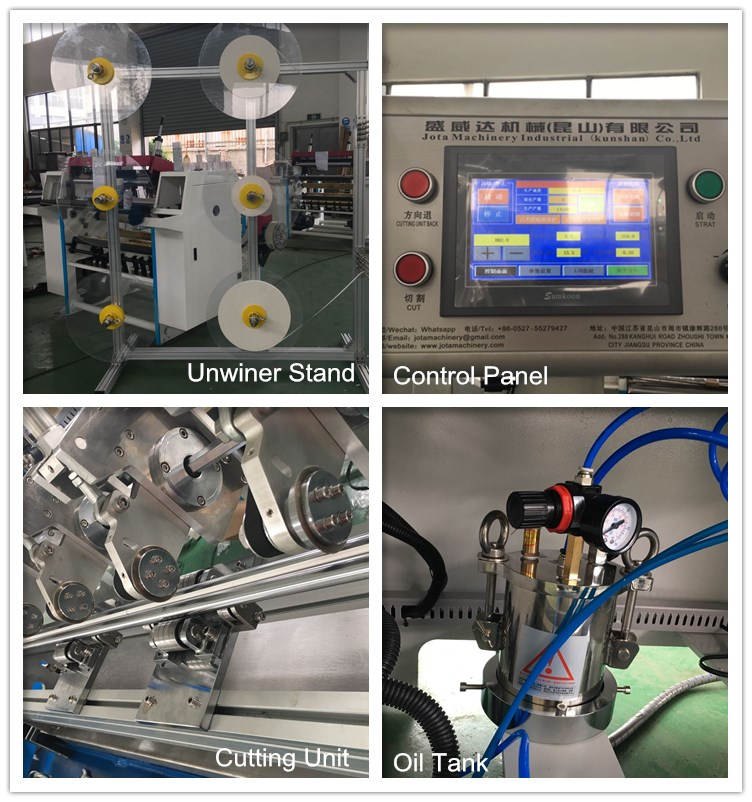

Power Supply | 380V/3Phase/50Hz | Paper Reel Stand | 3 Layers Cross Type | |
|
| Gluing Unit | 3 Layers Spraying Type | |
Measurement & Weight | Belt | 2 Pieces | ||
Measurement | 5600*1600*1750mm | Mandrel Shaft | 2 Pieces | |
Working Space | 11000mm * 6000mm*2000mm | Extra blades | 5 Pieces | |
Weight | 1000kgs | Useful Tool | 1 Set |
Specifications |
Application Material |
Kraft Paper |
Main |
Ø It adopts Samkoon PLC and meter counter, all the working parameters can be setup on the control panel. Siemens PLC control system, a mainframe operating |
Ø It adopts Xiankong Touch screen from Shenzhen, all the parameters can be displayed on the control panel, and easy operation. |
Ø It adopts imported frequency inverter to control the AC motor, the machine working is more stable |
Ø It adopts separate electrical control box, and it is with input plug terminal, the sale after service and repair shall be more easier |
Ø Text Display operation, all of the features automatic memory, automatic preservation, automatic fault display. |
Ø It adopts dialogue monitor, it is with function of automatic store, trouble display, working position |
Ø It adopts imported Multi cutters to cut the paper core, it is high precision, and more bearable no longer incision more precision without wasting. |
Ø The transmission parts with extreme quiet design,adopt special treatment, it is high efficiency and low maintenance. |
Ø It adopts double side glue coating devices, the paper starw is more sticky and stronger. The use of double-sided adhesive plastic trough independent stainless steel scraper polyurethane imports, production of a paper on the strength of stronger glue on one side of the traditional paper machine. |
Ø It adopts Sensor for the paper straw length tracking, after get to the setup length, the paper core shall be cut off. |
Ø Circuit System with Remote Control function, users can travel in the office or in the field can be a computer monitor in the operation of plant equipment. If the circuit and system failure and other reasons, and in our communications tools and software control, plant technical personnel can be created to implement and maintain operational function |
We supply all kinds of packaging machines tp satisfy the stringent requirements for Health and Safety, and meet the latest European CE standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world. By Superior quality to create brand, prefect service to make satisfactory. We warmly welcome the friend from home and abroad to work with us to win a mutual benefit future. Our Services Q1: What's payment terms ,trade terms you accept ? A: Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc. Q2.Does it easy to operate and what can i do if it doesn't work? A; First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required. Q3. If the machine's spare parts broken ,where can i get ? A: We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free. FAQ 1, Are you trading company or manufacturer? We are manufacturer, and also provide the business solution to all the friends. 2, Do you have quality certificate? Yes we have CE, SGS etc. 3,What's the delivery time? Around 20~30days, however, based on order. 4, Can you help us to buy other goods? Sure of that, it is our honor to work for you, and control the goods quality. Contact us if you need more details on paper drinking straw making machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Paper Straws Making Machine、Paper Bamboo Straw Making Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
