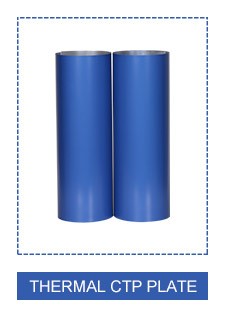

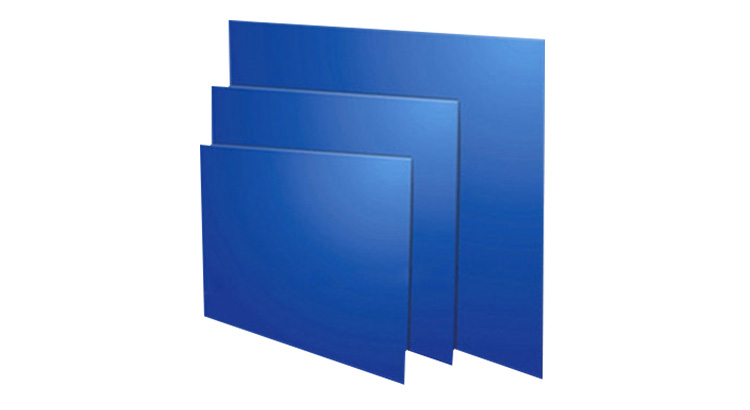

HUIDA Brand GTO Size Offset Printing Thermal CTP Plate

Product Description

#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:597px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:597px}#detail_decorate_root .magic-4{overflow:hidden;width:750px;height:362px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:0;margin-left:0;width:750px;height:362px}#detail_decorate_root .magic-6{overflow:hidden;width:750px;height:410px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width:750px;height:410px}#detail_decorate_root .magic-8{vertical-align:top}#detail_decorate_root .magic-9{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-10{text-align:center;padding:0;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-11{font-size:28px}#detail_decorate_root .magic-12{text-align:center}#detail_decorate_root .magic-13{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-14{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-15{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-16{margin:0;padding:0}#detail_decorate_root .magic-17{font-size:14px;font-weight:400;line-height:28px}#detail_decorate_root .magic-18{font-size:14px;font-weight:400}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:53px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:53px}#detail_decorate_root .magic-21{width:750px;border-collapse:collapse}#detail_decorate_root .magic-22{min-height:18px;padding:5px 10px;overflow:hidden;width:164px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-23{text-align:left}#detail_decorate_root .magic-24{min-height:18px;padding:5px 10px;overflow:hidden;width:538px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:375px}#detail_decorate_root .magic-27{font-weight:400;line-height:28px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:475px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:475px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:448px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:448px}#detail_decorate_root .magic-32{padding:5px 10px;overflow:hidden;width:724px;box-sizing:content-box}#detail_decorate_root .magic-33{display:none}#detail_decorate_root .magic-34{padding:5px 10px;overflow:hidden;width:164px;box-sizing:content-box}#detail_decorate_root .magic-35{padding:5px 10px;overflow:hidden;width:539px;box-sizing:content-box}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:369px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:369px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:263px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:263px}#detail_decorate_root .magic-40{overflow:hidden;width:247.33333333333334px;height:323.50184204215986px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:247px;height:323px}#detail_decorate_root .magic-42{overflow:hidden;width:247.33333333333334px;height:323.50184204215986px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-43{overflow:hidden;width:750px;height:339px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-44{margin-top:0;margin-left:0;width:750px;height:339px}#detail_decorate_root .magic-45{line-height:inherit}#detail_decorate_root .magic-46{overflow:hidden;width:750px;height:813px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:750px;height:813px}#detail_decorate_root .magic-48{overflow:hidden;width:750px;height:359px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-49{margin-top:0;margin-left:0;width:750px;height:359px}#detail_decorate_root .magic-50{overflow:hidden;width:750px;height:443px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-51{margin-top:0;margin-left:0;width:750px;height:443px}#detail_decorate_root .magic-52{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-53{padding:0;font-size:16px;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-54{width:446px}#detail_decorate_root .magic-55{overflow:hidden;width:446px;height:264.4743935309973px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-56{margin-top:0;margin-left:0;width:446px;height:275px}#detail_decorate_root .magic-57{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-58{font-size:medium;font-weight:400;line-height:28px}#detail_decorate_root .magic-59{overflow:hidden;width:750px;height:696px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-60{margin-top:0;margin-left:0;width:750px;height:696px}#detail_decorate_root .magic-61{overflow:hidden;width:750px;height:459px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-62{margin-top:0;margin-left:0;width:750px;height:459px}#detail_decorate_root .magic-63{overflow:hidden;width:750px;height:305px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-64{margin-top:0;margin-left:0;width:750px;height:305px}#detail_decorate_root .magic-65{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-66{margin-top:0;margin-left:0;width:750px;height:464px} Company advantage Product Description HUIDA Brand GTO Size Offset Printing Thermal CTP Plate

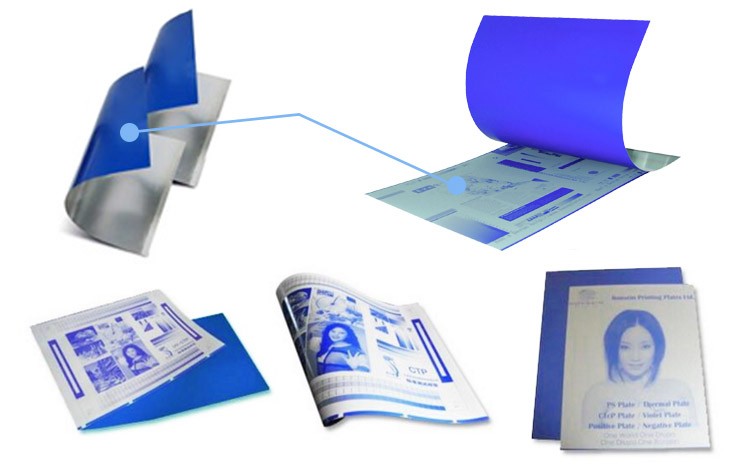

Offset positive thermal ctp Printing Plate have high sensitivity, good hydrophilic,well ink-water balance,Long Run-length,best market compatibility,so it is extensively usedcommercial printing and newspaper printing.Whether conventional or alcohol wet plate can output the, clear,excellently,perfectly colorful prints. Unbaked: Normal Ink 100,000-250,000 copies, UV Ink 20,000 to 50,000 copies  Baked: Normal Ink 300, 000-500,000 copies, UV Ink 100,000 to 150,000 copies (Actual run length may vary according machine,ink,paper conditions)
Product Type
HUIDA Brand GTO Size Offset Printing Thermal CTP Plate
Application Type
Commercial Printing, Newspaper Printing and Light Printing

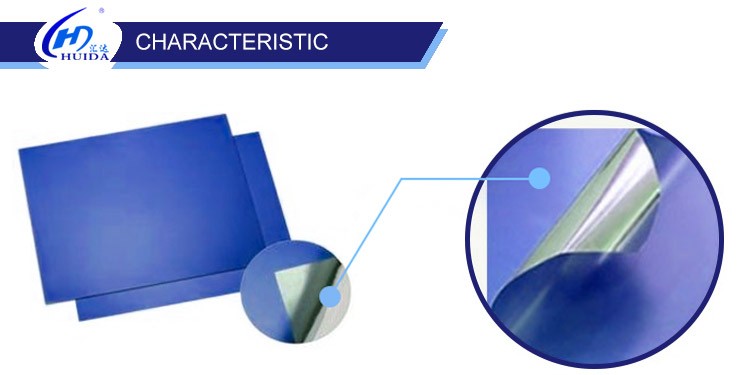

Plate Features
1.Easy-to-use. Able to work under white light and no need to pre-heating.
2.Steady Quality, Good Compatibility, Fast sensitive speed,
Excellent dot reappearance, Long Run-length
3. Close-grained Oxidation Layer –Outstanding dot reproduction,
high resolution and long run length
4.Excellent Hydrophilicity- keep ink-water balance optimally
5.Unique Photosensitive Coating-High and fast Sensitivity
6.Steady Quality and Extensive Adaptability
Compatible Plate setter
All the common thermal platesetter brands in the market
Material
First-class 99% 1060 H18 CTP Aluminum Alloy
Plate Thickness
0.15mm ,0.30mm ( customized 0.20,0.25mm)
Max. Size
1650*1350mm
Sensitive Wavelength
830nm
Exposure Energy
110-130 mj/cm2
Developing Temperature
23±2℃
Developing Time
25-30 Sec
Safe-light
2 hours under daylight handling
Resolution
1-99% at 200lpi
Shelf Life & Storage Conditions
24 months under the recommended storage conditions                                                         (10-25℃,with 40%--60% humidity, stock height less than 1.5m. Away from sunlight radiation &direct sunlight, Anti-humidity, Anti-acid &alkali).
Package
Standard Safe Package for Ocean                                                                                             (50sheets for 0.15mm,100sheets /0.30mm. wrapped by a black photo protective paper, then put in a strong brown carton box, finally 20-60boxes on a ply-wood pallet, outer covered by cardboard and wrapped plastic film)
1.Easy-to-use. Able to work under white light and no need to pre-heating.
2.Steady Quality, Good Compatibility, Fast sensitive speed, Excellent dot reappearance, Long Run-length.
3.Close-grained Oxidation Layer –Outstanding dot reproduction,high resolution and long run length. 4.Excellent Hydrophilicity- keep ink-water balance optimally.
5.Unique Photosensitive Coating-High and fast Sensitivity.
6.Steady Quality and Extensive Adaptability.
Exposing


Plate setters
kodak:Trendsetter/Lotem/Magnus
Fuji:Javelin T9000HS,
Heidelberg:Top setter/ Supra setter
Luscher: Xpose Plate setter
screen :PT-R
Creo :Scitex
Exposure energy
110-130mJ/cm²
Spectral Sensitivity
830nm -Peaks
Resolution
1-99% at 200 LPI
FM capability
20 micron stochastic
Image color
Blue
Developing
Processor
All the kind Brands

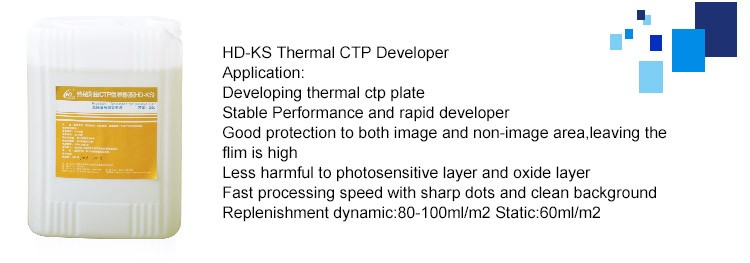

Kodak Gold Star or our own developer
Processing temperature
23-26℃
Developing time
25-30 sec

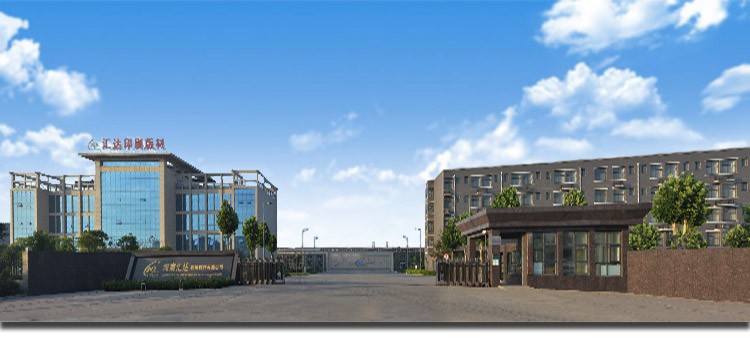

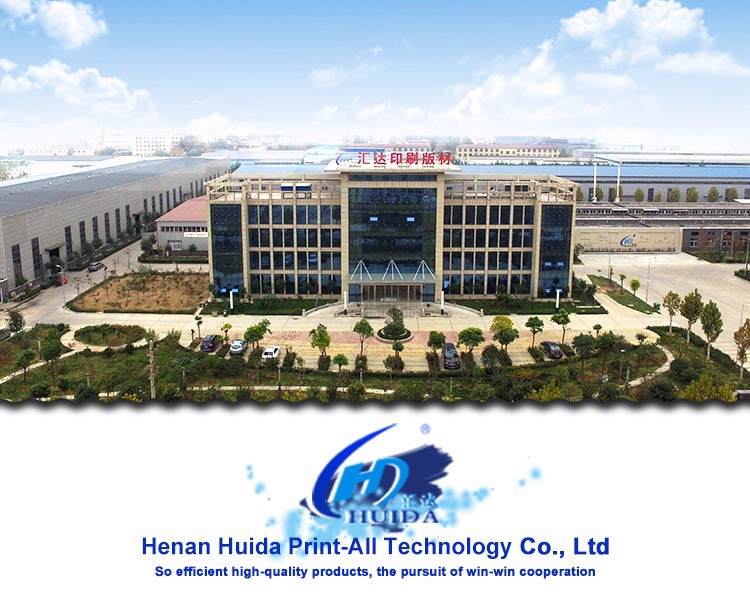

Related Products About us Henan Huida Print-All Technology Co., Ltd. founded in 2003,the registered capital of 36 million yuan,investment 170 million yuan.Our company is Iocated in Changge Dazhou Town industrial concentration area,factory area is 103 acres,and has 180 employees,complete supportingfacilities, management production environment is superior,regional obvious advantages,is set research anddevelopment,production and comprehensive inspection of the specialization,scale of print materials manufacturing enterprises. 1. Samples available, we can send 8 pieces plates to customer for testing.
2. All sizes of plates can be produced according to customers' demand.
3. Online technical support supplied . If there is any problem, you can feel free to contact us at any time, we will help you solve the problem in time.

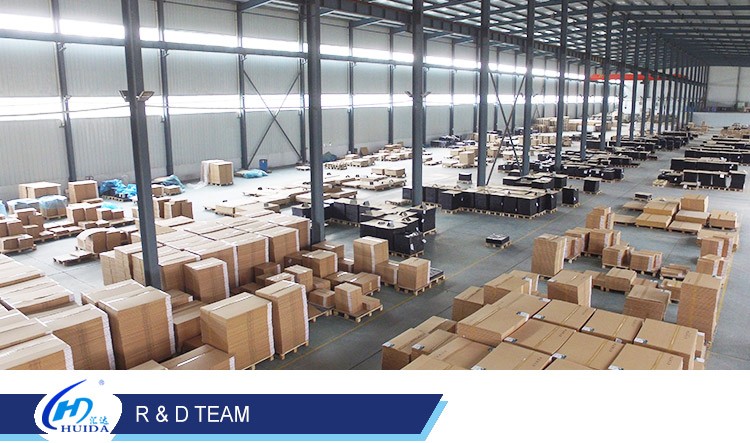

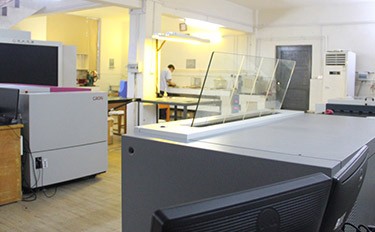

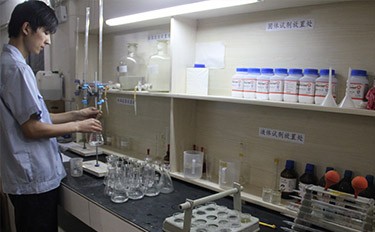

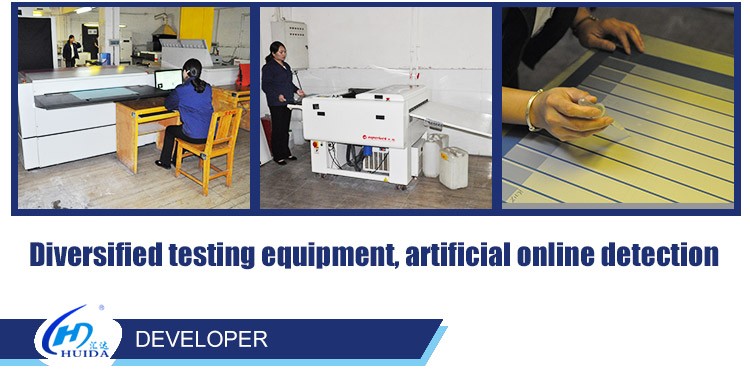

HUIDA has a strong professional R & D team. Besides that, we have advanced production equipment and sophisticated testing instruments. 24 hours online testing to ensure product quality.


HUIDA has more than 30 patent products and all of our products meet a series of national standards including HG\T26 94-95 Standard and ISO-9001  Quality Control System Certificate.
Exhibition FAQ Q:When can I get the price?
A:We will reply you within 24 hours after we get your inquiry. Or you can directly call us if you are
very urgent.

Q.Can we get samples for testing?
A: We can provide you with free samples, you only need to bear the freight. If your first purchase quantity meets our requirements, we can apply for you more favorable price.

Q.How long is the production time of the goods?
A: Our warehouse has sufficient regular sizes stocking, ready to delivery. And we have a lot of raw materials storage, customer specifications can be arranged in a timely manner production, delivery can be made within 7-10 days.

Q.How to do the problems of product in the printing process?
A: We have a professional technical team, will be online to solve the use of the process encountered various problems. If can not be resolved online, technical staff will arrange timely home visits.
Trade Flow Contact us

Contact us if you need more details on Offset Printing Plate. We are ready to answer your questions on packaging, logistics, certification or any other aspects about thermal ctp plate、ctp plate. If these products fail to match your need, please contact us and we would like to provide relevant information.
