Home > Products > Slitter Rewinder > Jota Machinery High Grade Fiber Glass Plastic Film Kraft Paper Slitter Rewinder Machine

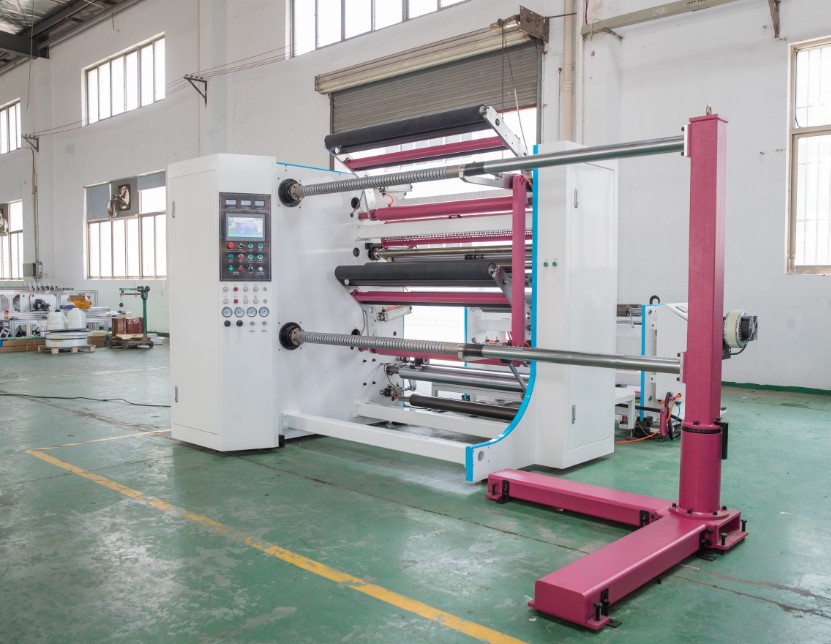

Jota Machinery High Grade Fiber Glass Plastic Film Kraft Paper Slitter Rewinder Machine

Product Description

Durability Fiber Glass Kraft Paper Plastic Film Slitting Rewinding Machine  Product Description     Main Technical Parameters:

Max. Unwinding Width

1300mm

Max. Unwinding Diameter

1500mm

Max. Rewinding Diameter

1000mm

Slitting Width

10mm-1100mm

Acceptable Thickness Range

50-800gsm

Max. Machine Speed

300m/min

Unwinding/Rewinding Shaft

3’’(76mm) air expand shaft

Rated Power

21Kw

Machine Weight

4500kg

Overall Dimensions

3600*2400*2000mm



Main Applicable Materials And Specifications:

Ø  Machine suits to the slitting of various ultra-large type coiled material, such as plastic film (PVC,OPP,PET, CPP), paper, glass paper, aluminum-foil paper, aluminum foil, adhesive sticker, non-woven fabrics, and other coiled materials slitting and rewinding.

Ø  Machine adopts Innovance PLC control system and HMI control, all the parameters are shown on the screen. You only setup roll diameter, material thickness and original tension etc, the machine can work automatically.

Ø  It adopts 3 sets of Siemens Motor and 3pcs of YASKAWA Inverter.  Main motor is 7.5KW which used for speed of material feeding and blade shaft. And 2pcs of Rewinder Motor , each is 11KW which controlled by PLC.

Ø  Machine adopts hydraulic loading system, it have hydraulic stand full fill oil, use the cylinder control the loading and unloading, this part controlled by separate motor.

Ø  Machine adopts rectify a deviation system, it controlled by separate correction motor, machine have four guide rail in unwinding stand four corn. It can be rectify a deviation for materials. The motor thrust around 3 tons, it is no problem with your materials.

Ø  Unwinder adopts Balance Roller which used to adjust the Material Tightness, if material is wrinkled when feeding, then you can adjust the balance roller to keep it balance !

Ø  All transmission shafts are dynamic/static balance treated.

Ø  It adopts automatic meter counter. When reached the preset length, machine stop and alarm automatically.

Ø  It adopts emergency switch.

Ø  Machine parts and wall through CNC processing, the wall more strong than before, it's thickness 50mm. And the painting adopts baking paint.



Components

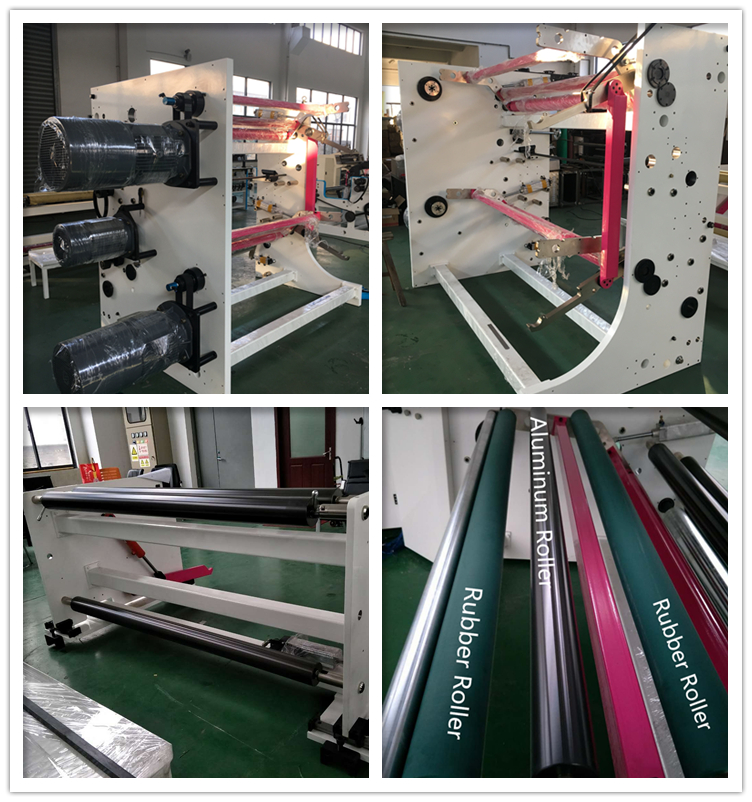

Unwinding section

-3”(76mm)air expanding rewinding shaft

- Hydraulic automatic lift-up loading system

-Ultrasonic correction to get the very high precision

-Electromagnetic Brake from Taiwan

-Fully automatic tension controller

-Balance Roller which used to adjust the Material Tightness

Slitting Section

-Choices of Razor cutter or Disc cutter

-Disc Cutter Assembly adopt the cam self-locking

-Cutter with adjustable and moveable blade base.

-Meter counter

-NIP Roller which controller by main motor.

Rewinding Section

-3”air expanding rewinding shafts

-Center Rewinding technology

- Pressure Arm

-Electromagnetic Clutch from Taiwan

Controlling Section

-Inovance PLC & HMI

-All the parameters are displayed on the monitor

-Low voltage electrical appliances all from Schneider

Trimmed Waste Edge

-Edge Waste Blower with Expulsion Tube

Optional

-6'' and 12” Unwinding shafts

-Shaftless type Unwinding Stand.

-Friction Differential Shaft for rewinding.

-Ultrasonic type Edge Position Control (EPC)

-Safety guard for the slitting device.

-Emergency Switches on the 4 corner of machine.

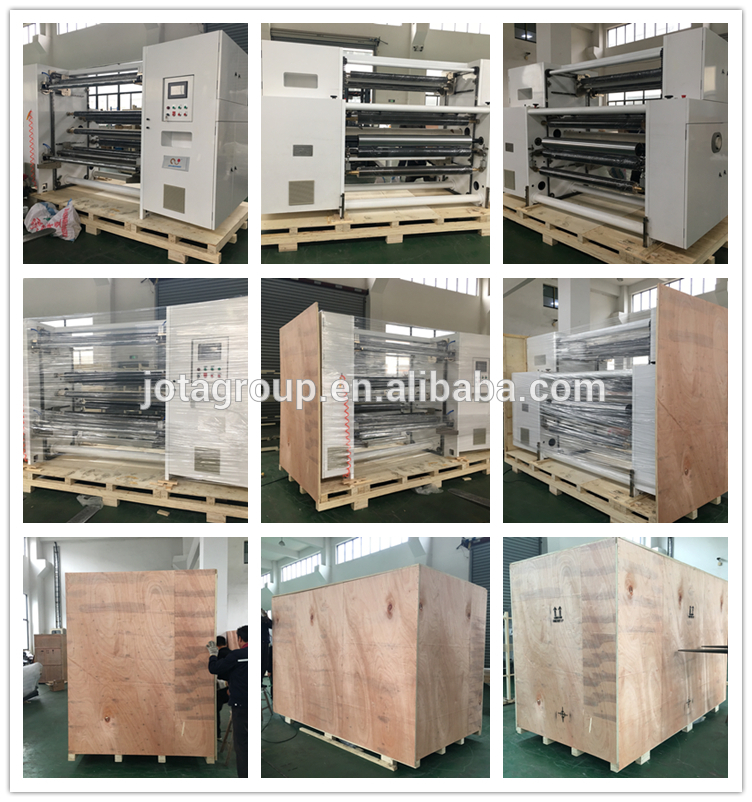

  Packaging & Shipping   Packaging: Jota Machinery High Grade Fiber Glass Plastic Film Kraft Paper Slitter Rewinder Machine is with flexible wrapping and wooden case.With the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Manu, Inverter Manu and Electrical Schematic Diagram.   Delivery Time: Within 30 days after received 30% deposit receipt by T/T. Jota Machinery High Grade Fiber Glass Plastic Film Kraft Paper Slitter Rewinder Machine .   Recommended Products   Our Customer   Exhibition   Company Information    Jota Machinery Industrial (Kunshan)Co.,Ltd is a long established engineering company combined with science, research, development, production and management. It ‘s specializing in plastic & paper packaging machinery with more than 20 years experiences in China.     We supply all kinds of packaging machines to satisfy the stringent requirements for Health and Safety, and meet the latest European CE Standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world.     By Superior quality to create brand, perfect service to make satisfactory. We warmly welcome the friends from home and abroad to work with us to win a mutual benefit future. Our Services   Q1. What's payment terms ,trade terms you accept ? Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also  accept other way like L/C , wetern union ,and do CFR&CIF etc. Q2.Does it easy to operate and what can i do if it doesn't work? First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will  sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required. Q3 . If the machine's spare parts broken ,where can i get ? We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case  it broken within one year ,we will sent you for free.    FAQ   1, Are you trading company or manufacturer? We are manufacturer, and also provide the business solution to all the friends. 2, Do you have quality certificate? Yes we have CE, SGS etc. 3,What's the delivery time? Around 20~30days, however, based on order. 4, Can you help us to buy other goods? Sure of that, it is our honor to work for you, and control the goods quality.

Contact us if you need more details on Fiber Glass Plastic Film Kraft Paper Slitter Rewinder Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Kraft Paper Slitter Rewinder Machine、Slitter Rewinder. If these products fail to match your need, please contact us and we would like to provide relevant information.
