Duplex One Drum Surface Winder Slitter

Product Description

Product Description   Duplex One Drum Surface Winder Slitter

PARAMETERS

Model

JT-SUR-1300

Max. Parent Web Width

1300mm

Max. Parent Web Diameter

1200mm

Max. Rewinding Diameter

600mm

Min. Slitting Width

10mm

Acceptable Thickness Range

20~500gsm

Max. Machine Speed

300m/min

Unwinding / Rewinding Shaft

3” & 6” Air Expanding Shaft or customized size

Slitting Precision

±0.15mm

Power

25Kw (7.5Kw * 3 Sets + 2.2Kw)

Voltage

380V / 50Hz

Air Pressure

0.6Mpa

Size

3100mm(L)*3500mm(W)*1500mm(H)

Weight

4500Kg



SPECIFICATIONS

Applicable Materials

Duplex One Drum Surface Winder Slitter is applied to the slitting of Aluminum household foil, sublimation paper, cigarette paper, tipping paper, inner frame paper, plug wrap paper, regular paper, films (PVC, OPP, PET, CPP) etc.

Main Features

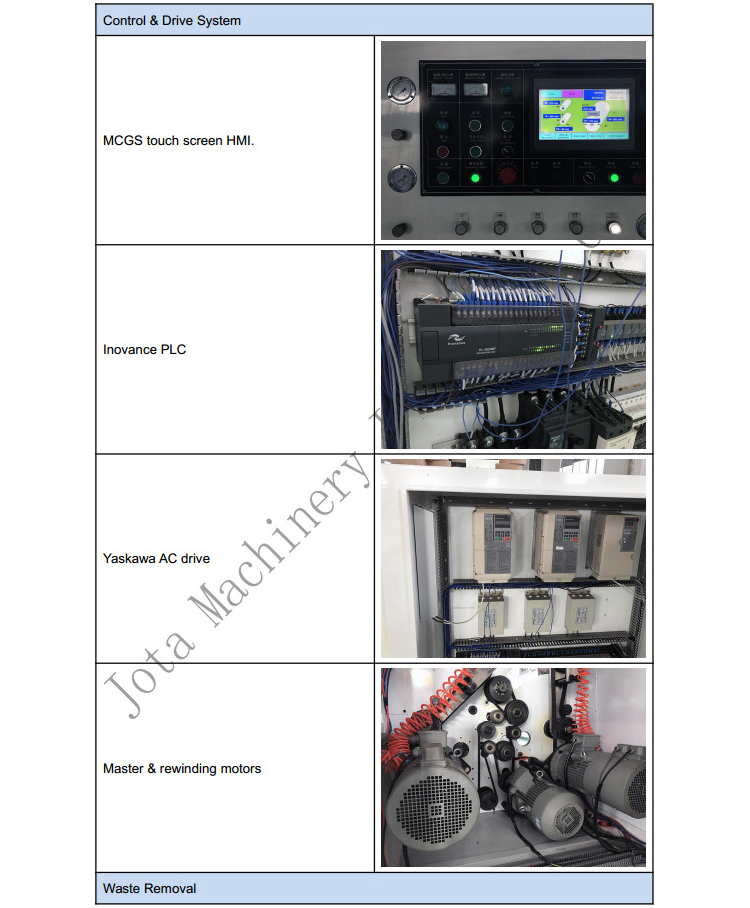

Inovance PLC & MCGS touch screen HMI, all the parameter are displayed on the monitor. Just setup the roll diameter, material thickness, initial tension..., the machine runs automatically.

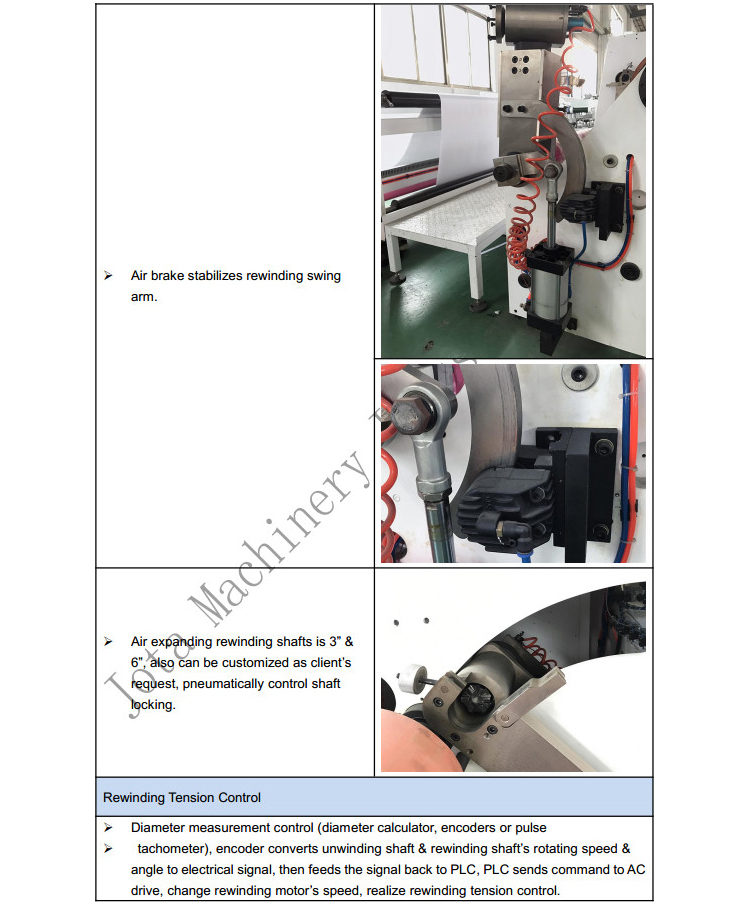

Automatic tension control by PLC.

Siemens master motor, driven by Yaskawa AC drive.

2 sets of Siemens motor for rewinding, also driven by Yaskawa AC drive.

Foothold wall panel was processed by CNC, quenched A3 steel material, thickness up 45mm, highly precise & much stronger.

Famous brand electrical appliances.

Dynamic / static balancing transmission rollers.

Surface hardness treated transmission rollers to protect the foil.

Emergency switch.

CE certificate.

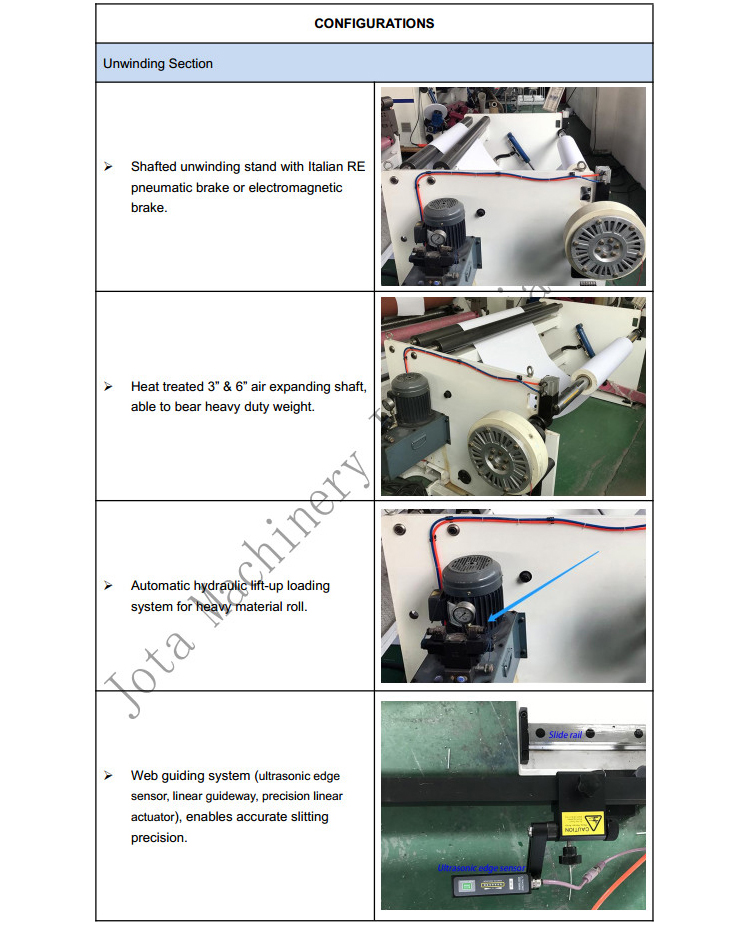

Shafted unwinding stand with Italian RE pneumatic brake or electromagnetic brake.

Heat treated 3” & 6” air expanding shaft, able to bear heavy duty weight.

Automatic hydraulic lift-up loading system for heavy material roll.

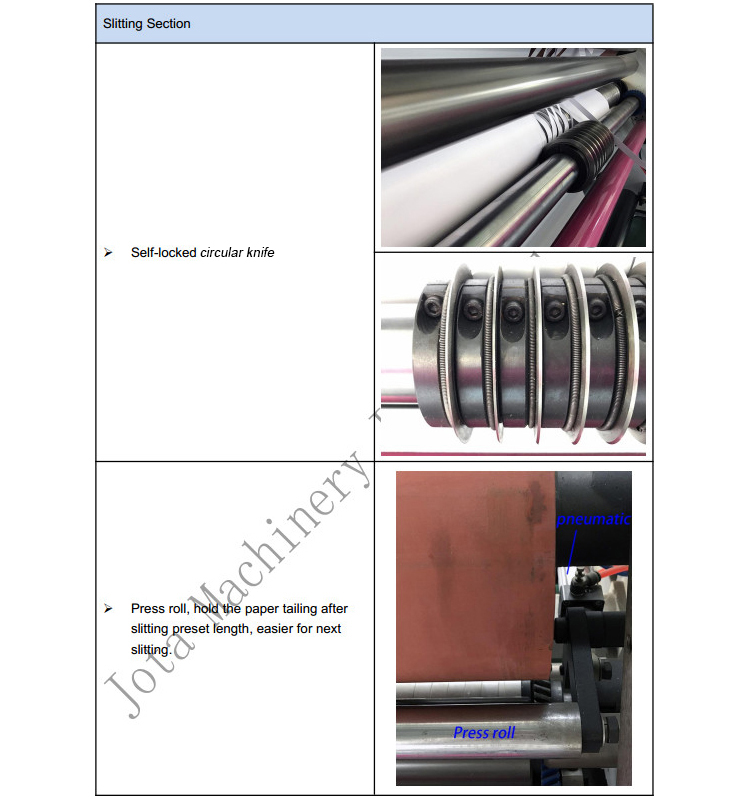

Self-locked circular knife, min. slitting width is 10mm.

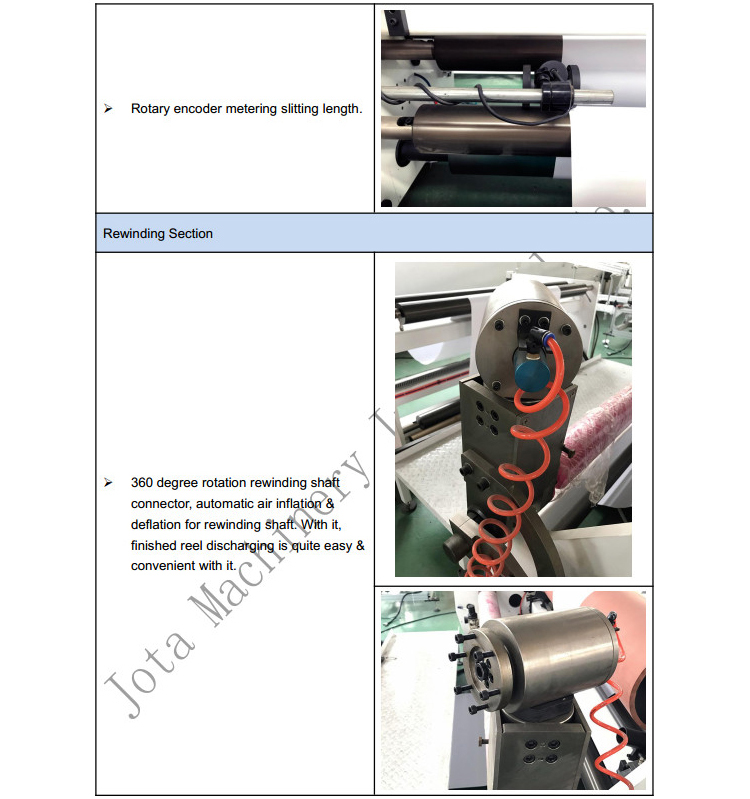

Rotary encoder metering slitting length.

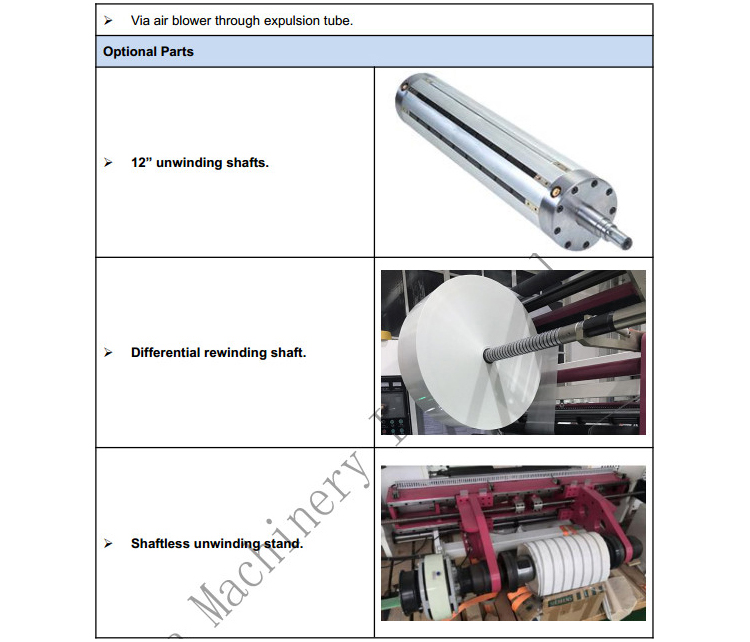

Waste removal via air blower through expulsion tube.

    Packaging & Shipping   Packaging: Duplex One Drum Surface Winder Slitter is with flexible wrapping and wooden case.With the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Menu, Inverter Menu and Electrical Schematic Diagram.   Company Information   As a company whose target is always win-win together with clients, each professional staff of Jota Machinery Industrial (Kunshan) Co.,Ltd stands by 18h a day to assist customers explore their deep requirements based on our knowledge & experience, then provide most suitable solution for clearing our customer's longly exsited pain point, backs up them bravely taking the step of changing their current status.   Factory     Exhibition     Clients     Our Services   1. What's payment terms & trade terms you accept?
Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment, we usually offer FOB Ningbo price. We also accept other way like L/C, Western Union, and do CFR & CIF etc.
2. Does it easy to operate and what can I do if it doesn't work?
First, our machine is stable and easy to operate by one man, what you do is just learn some basic thing like loading the jumbo roll paper, start the machine and cutting the paper. And we will sent you manual and video, we suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong, you can call us, video-chat, Email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
3. If the machine's spare parts broken, where can I get?
We will give you the spare parts which is vulnerable, and some critical parts like gear box, our quality is good, in case it is broken within one year, we will sent you for free.   FAQ   1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2. Do you have quality certificate?
Yes we have CE, SGS etc.
3. What's the delivery time?
Around 20~30 days, mainly depends on order.
4. Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.

Contact us if you need more details on Surface Winder Slitter. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Duplex Winder Slitter、surface Slitter Rewinder machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
