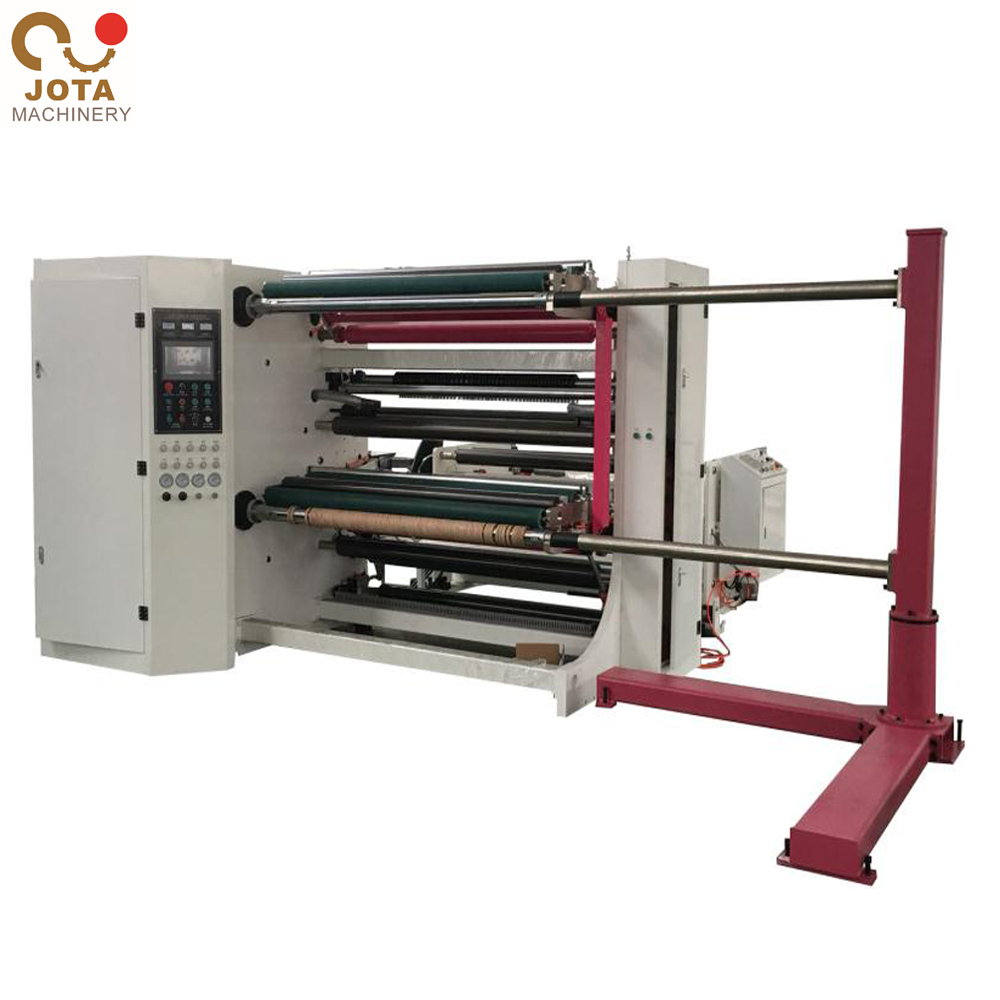

New Design Aluminum Foil Crepe Paper Kraft Paper Slitter Rewinder Machine
Product Description
Product Description Main Parameters: Max. Unwinding Width | 1300mm |
Max. Unwinding Diameter | 1500mm |
Max. Rewinding Diameter | 1000mm |
Slitting Width | 10mm-1100mm |
Acceptable Thickness Range | 50-800gsm |
Max. Machine Speed | 300m/min |
Unwinding/Rewinding Shaft | 3’’(76mm) air expand shaft |
Rated Power | 21Kw |
Machine Weight | 4500kg |
Overall Dimensions | 3600*2400*2000mm |
Main Applicable Materials And Specifications: |
Ø Machine adopts Innovance PLC control system and HMI control, all the parameters are shown on the screen. You only setup roll diameter, material thickness and original tension etc, the machine can work automatically. |
Ø It adopts 3 sets of Siemens Motor and 3pcs of YASKAWA Inverter. Main motor is 7.5KW which used for speed of material feeding and blade shaft. And 2pcs of Rewinder Motor , each is 11KW which controlled by PLC. |
Ø Machine adopts hydraulic loading system, it have hydraulic stand full fill oil, use the cylinder control the loading and unloading, this part controlled by separate motor. |
Ø Machine adopts rectify a deviation system, it controlled by separate correction motor, machine have four guide rail in unwinding stand four corn. It can be rectify a deviation for materials. The motor thrust around 3 tons, it is no problem with your materials. |
Ø Unwinder adopts Balance Roller which used to adjust the Material Tightness, if material is wrinkled when feeding, then you can adjust the balance roller to keep it balance ! |
Ø All transmission shafts are dynamic/static balance treated. |
Ø It adopts automatic meter counter. When reached the preset length, machine stop and alarm automatically. |
Ø It adopts emergency switch. |

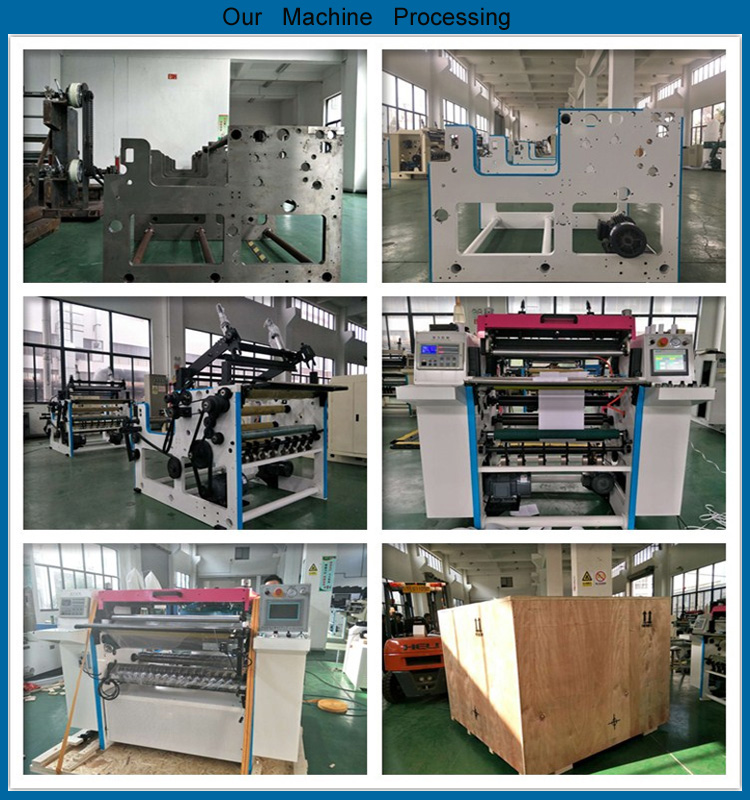

Ø Machine parts and wall through CNC processing, the wall more strong than before, it's thickness 50mm. And the painting adopts baking paint. |
Unwinding section | -3”(76mm)air expanding rewinding shaft - Hydraulic automatic lift-up loading system -Ultrasonic correction to get the very high precision -Electromagnetic Brake from Taiwan -Fully automatic tension controller -Balance Roller which used to adjust the Material Tightness |
Slitting Section | -Choices of Razor cutter or Disc cutter -Disc Cutter Assembly adopt the cam self-locking -Cutter with adjustable and moveable blade base. -Meter counter -NIP Roller which controller by main motor. |
Rewinding Section | -3”air expanding rewinding shafts -Center Rewinding technology - Pressure Arm -Electromagnetic Clutch from Taiwan |
Controlling Section | -Inovance PLC & HMI -All the parameters are displayed on the monitor -Low voltage electrical appliances all from Schneider |
Trimmed Waste Edge | -Edge Waste Blower with Expulsion Tube |
Optional | -6'' and 12” Unwinding shafts -Shaftless type Unwinding Stand. -Friction Differential Shaft for rewinding. -Ultrasonic type Edge Position Control (EPC) -Safety guard for the slitting device. -Emergency Switches on the 4 corner of machine. |
Related Products

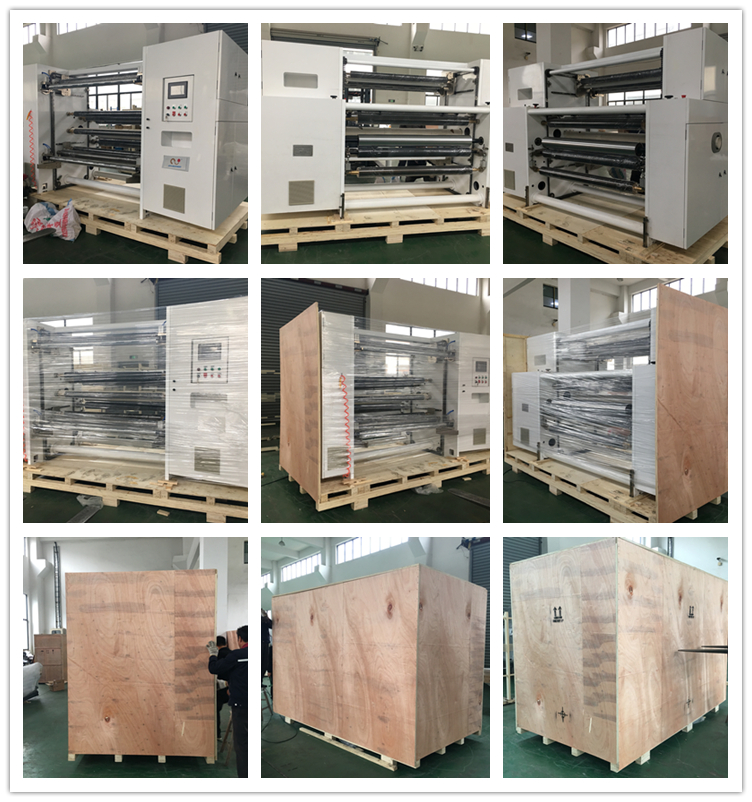

Packaging & Shipping Packaging: New Design Aluminum Foil Crepe Paper Kraft Paper Slitter Rewinder Machine is with flexible wrapping and wooden case.With the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Manu, Inverter Manu and Electrical Schematic Diagram. Delivery Time: Within 30 days after received 30% deposit receipt by T/T. New Design Aluminum Foil Crepe Paper Kraft Paper Slitter Rewinder Machine.
Our Clients
Company Information Jota Machinery Industrial Co.,Ltd is a long established engineering company combined with science,research, development, production and management, It is specializing in plastic & paper packing machinery with more than 30 years experiences in China. We supply all kinds of packaging machines tp satisfy the stringent requirements for Health and Safety, and meet the latest European CE standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world. By Superior quality to create brand, prefect service to make satisfactory. We warmly welcome the friend from home and abroad to work with us to win a mutual benefit future.
Our Services Q1:what's payment terms ,trade terms you accept ? Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc. Q2.Does it easy to operate and what can i do if it doesn't work? First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required. Q4. If the machine's spare parts broken ,where can i get ? We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free. FAQ 1, Are you trading company or manufacturer? We are manufacturer, and also provide the business solution to all the friends. 2, Do you have quality certificate? Yes we have CE, SGS etc. 3,What's the delivery time? Around 20~30days, however, based on order. 4, Can you help us to buy other goods? Sure of that, it is our honor to work for you, and control the goods quality. Contact us if you need more details on kraft paper slitter rewinder. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Aluminum Foil slitter rewinder、Craft Paper Slitter Rewinder Machine. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : Slitter Rewinder
