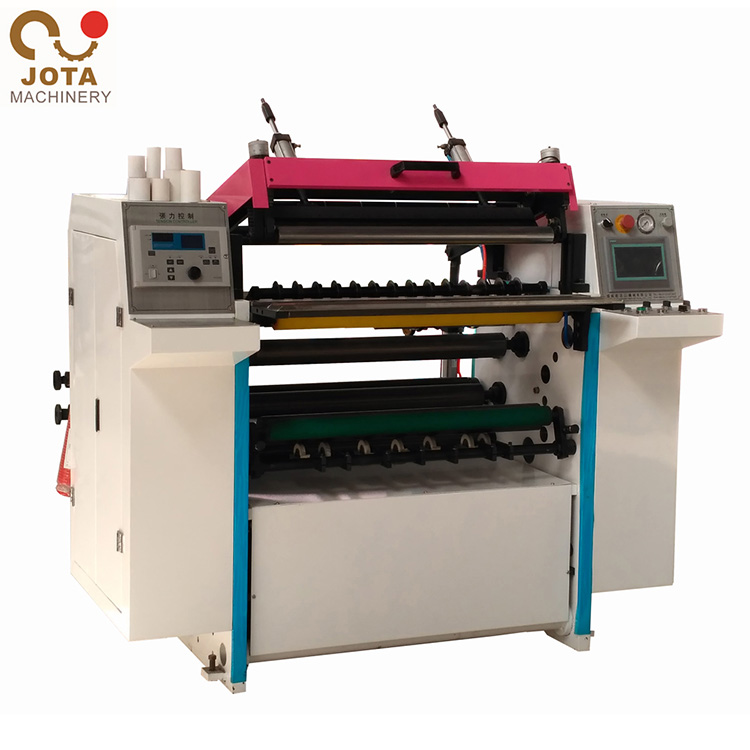

Maximum Rewinding Diameter 1000mm Thermal POS Paper Roll Slitting Rewinding Machine

Product Description

  Maximum Rewinding Diameter 1000mm Thermal POS Paper Roll Slitting Rewinding Machine     Unique Selling Point

SIEMENS PLC control & Color touch screen HMI

SIEMENS inverter motor

Automatic loading clamps (Motor drive chain up / down)

2 sets tension sensor & fully automatic tension control

Dual slitting knife system

Auto meter counter

Auto edge trim, waste processed by blower & expulsion tube

Overlap problem avoidable

  Features

Item

Maximum Rewinding Diameter 1000mm Thermal POS Paper Roll Slitting Rewinding Machine

Material

Fax paper, Cash register paper, ATM paper, ECG paper, Medical record paper, POS paper

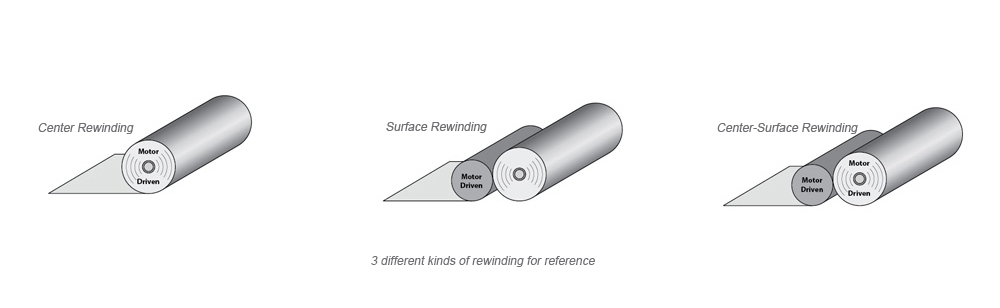

Rewinding type

Surface

Unwinding

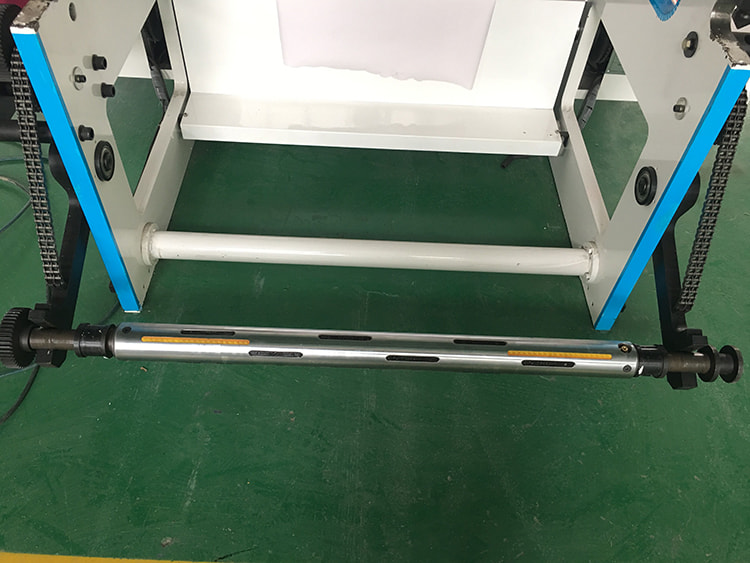

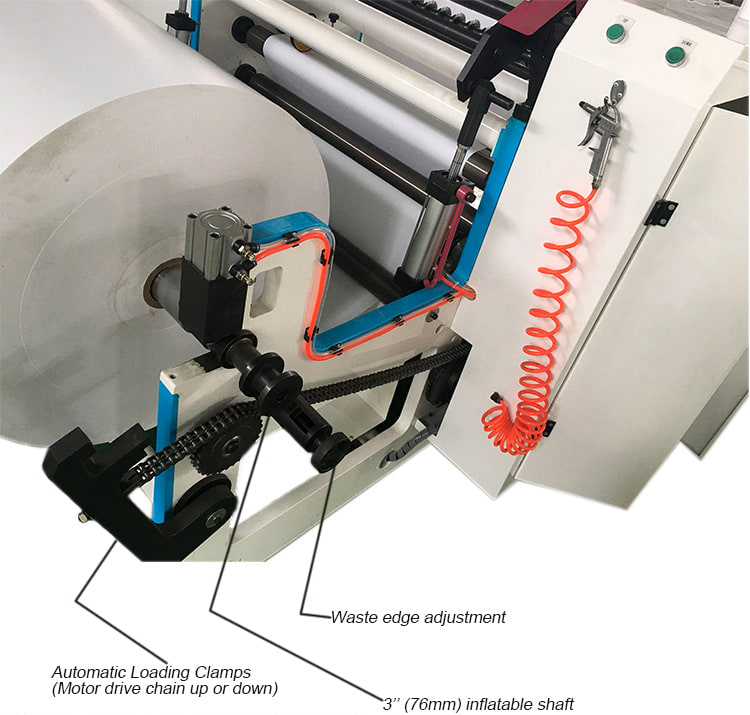

3’’ (76mm) inflatable shaft which can be pneumatically locked or released

Automatic Loading Clamps (Motor drive chain up or down)

Two sets sensor provides feedback of Web tension

Auxiliary roller & electromagnetic brake for tension control

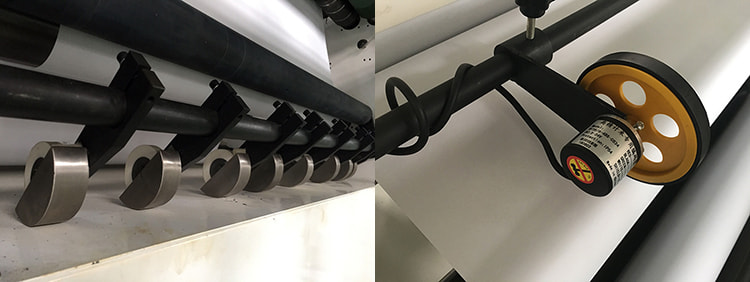

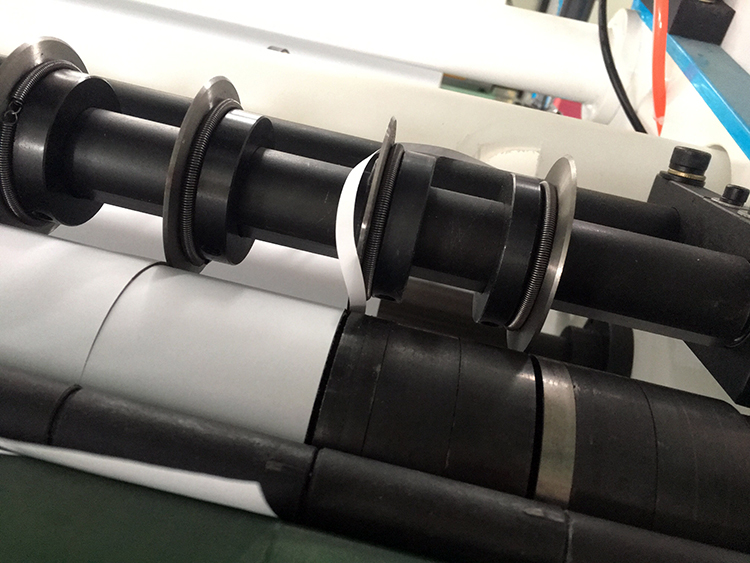

Slitting

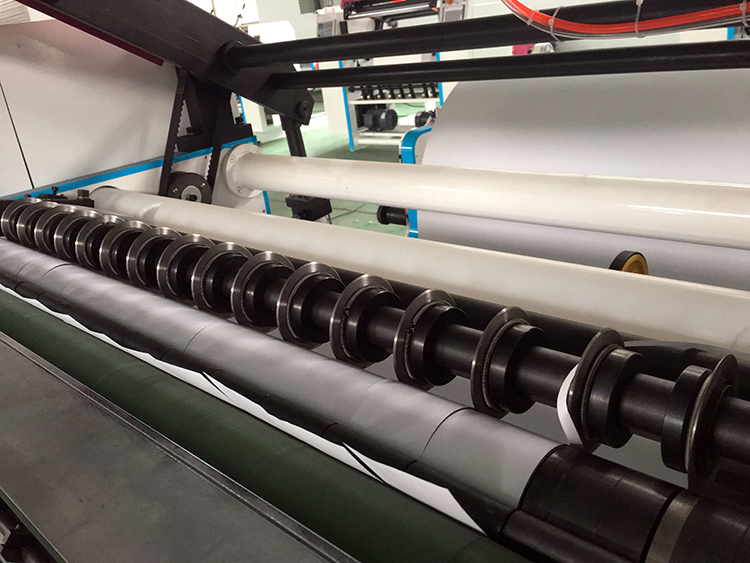

Adjustable upper circular knives & lower razor blade groove

Spacer for changing slit width

Meter counter enables machine automatically stops after slitting preset length

Redline mark at the end of paper roll

Auto edge trim, waste processed by blower & expulsion tube

Rewinding

0.5”, 1” rewinding shaft, customization acceptable

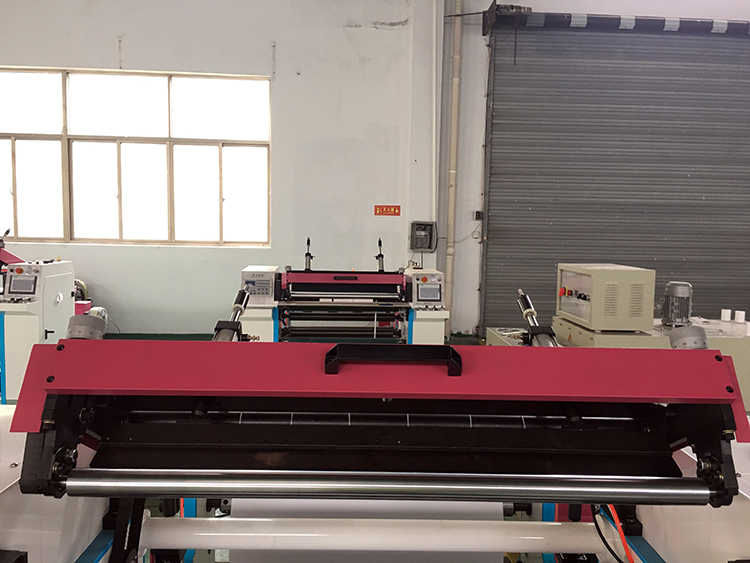

Auto tucker assists paper rolling at the beginning

Pressure roller for avoiding swell of slitting edge

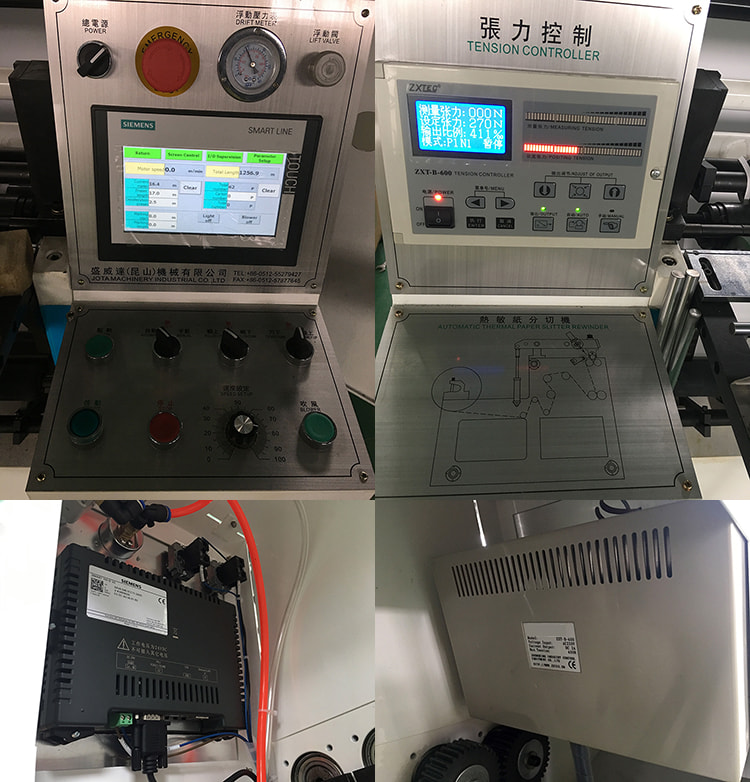

PLC & HMI

SIEMENS PLC

Color touch screen & graphical user interface

Rewinding tension control

Machine auto stop by reaching preset paper length

Low voltage electrical appliances from Schneider

Emergency switch

  (1) Application   Kinds of thermal paper: Fax paper, Cash register paper, ATM paper, ECG paper, Medical record paper, POS paper   (2) Rewinding type   Surface   (3) Unwinding   Unwind section   Inflatable shaft   (4) Slitting     Circular knives   Dual slitting knives system   Redline marking ink wheel & meter counter   (5) Rewinding      Auto tucker equipped with pressure roller   6. PLC & HMI   SIEMENS PLC & Tension control     Parameters

Technical Specifications

Web Width

900mm

Max. Unwinding Diameter

1000mm

Max. Rewinding Diameter

160mm

Min Slit Widths

25mm

Max. Production Speed

110m/min

Main Power

2.95KW

Weight

1100KG

Dimension

2000*1700*1500mm (L*W*H)



Configurations

Item

Model

Quantity

Remark

Computer System

PLC (SIEMENS)

1 Set

SIEMENS + WEINVIEW

Motor



1 Set

SIEMENS from Germany

Frequency Inverter



1 Set



Unwinding Shaft

3’’ (76mm) inflatable shaft



Rewinding Shaft

0.5’’, 1’’ or as your request



Upper/Lower Round Knife



15 Sets



Magnetic brake



1 Set

From Taiwan

Tension sensor



2 Sets



Tension control



1 Set



Low Voltage electrical switch



SCHNEIDER

Blower



1 Set

China

Cylinder



Airtac from Taiwan

Air pressure valve



SMC from Japan

Relay



CHNT

Spacer

As your request

As your request

China

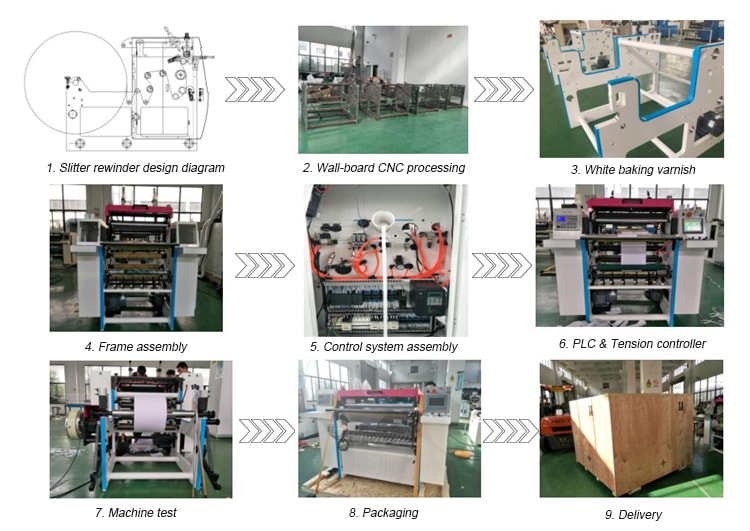

  Product Processing     Packaging & Shipping   Packing Details: Maximum Rewinding Diameter 1000mm Thermal POS Paper Roll Slitting Rewinding Machine is with flexible wrapping and wooden case.With the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Manu, Inverter Manu and Electrical Schematic Diagram.
Delivery time : Within 15 days after received 30% deposit receipt by T/T.   Our Services     1. What's payment terms & trade terms you accept?
Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment, we usually offer FOB Ningbo price. We also accept other way like L/C, Western Union, and do CFR & CIF etc.
2. Does it easy to operate and what can I do if it doesn't work?
First, our machine is stable and easy to operate by one man, what you do is just learn some basic thing like loading the jumbo roll paper, start the machine and cutting the paper. And we will sent you manual and video, we suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong, you can call us, video-chat, Email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
3. If the machine's spare parts broken, where can I get?

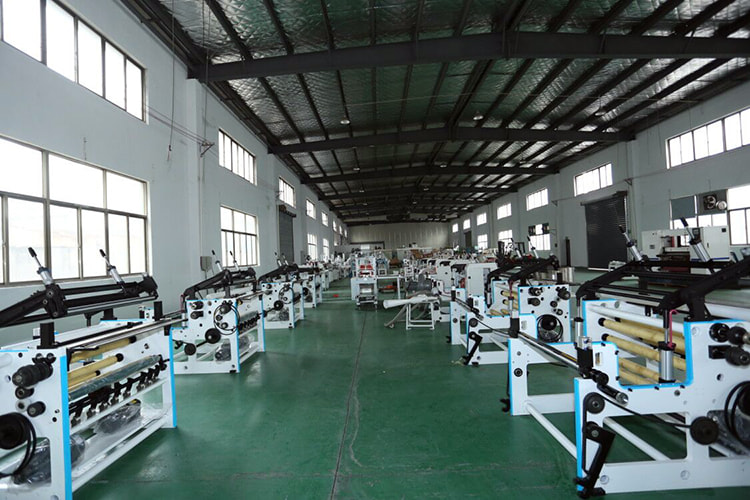

We will give you the spare parts which is vulnerable, and some critical parts like gear box, our quality is good, in case it is broken within one year, we will sent you for free.   Jota Machinery   Jota Machinery Industrial (Kunshan) Co., Ltd is a long established engineering company combined with science research, development, production & management, It is specializing in plastic & paper packing machinery with more than 30 years experiences in China.   We supply all kinds of packaging machines to satisfy the stringent requirements for Health and Safety, and meet the latest European CE standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world.   Factory     Exhibition     Clients     FAQ   1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2. Do you have quality certificate?
Yes we have CE, SGS etc.
3. What's the delivery time?
Around 20~30 days, mainly depends on order.
4. Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
